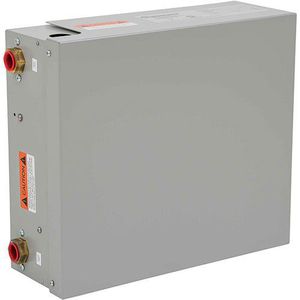

Chronomite TRIPLETS - High Capacity - High Activation - H3 models are manufactured to provide reliable point-of-use hot water with flow rates 2.8 gpm to 8.0 gpm. There is no pressure and temperature relief valve needed (unless required by code), saving time and money on installation. The housing is fabricated from rugged stainless steel. The element assembly is fabricated from Celcon plastic. The heating coils are nichrome. It uses a digital microprocessor for temperature control - Ultra quick response times for temperature variations - 120 times per second. Microprocessor use is the most energy efficient means of heating water. Ideal applications include: Emergency eyewash, eye-face wash. Provides unlimited 84°F tepid water meeting ANSI Z358.1. Environmentally friendly. Saves water and energy - 99% energy efficient. Made in the U.S.A.

10 CFR Section 431.105 and Section 431.106; Federal Public Law 111-380 (No Lead); Cal Green

Specification:

• WIDTH INCHES: 17-1/8
• TEMPERATURE RANGE: Preset to 84°F
• RECOMMENDED WIRE SIZE: 8 AWG
• MANUFACTURERS PART NUMBER: ER-120H/240
• CONSTRUCTION: Rugged Jet-Kote Gray Steel
• MINIMUM ACTIVATION FLOW RATE: 2.80 GPM
• WORKING PRESSURE: 25 to 80 psi
• TEMP RISE (°F) @ 4.0 GPM: 49°F
