Description

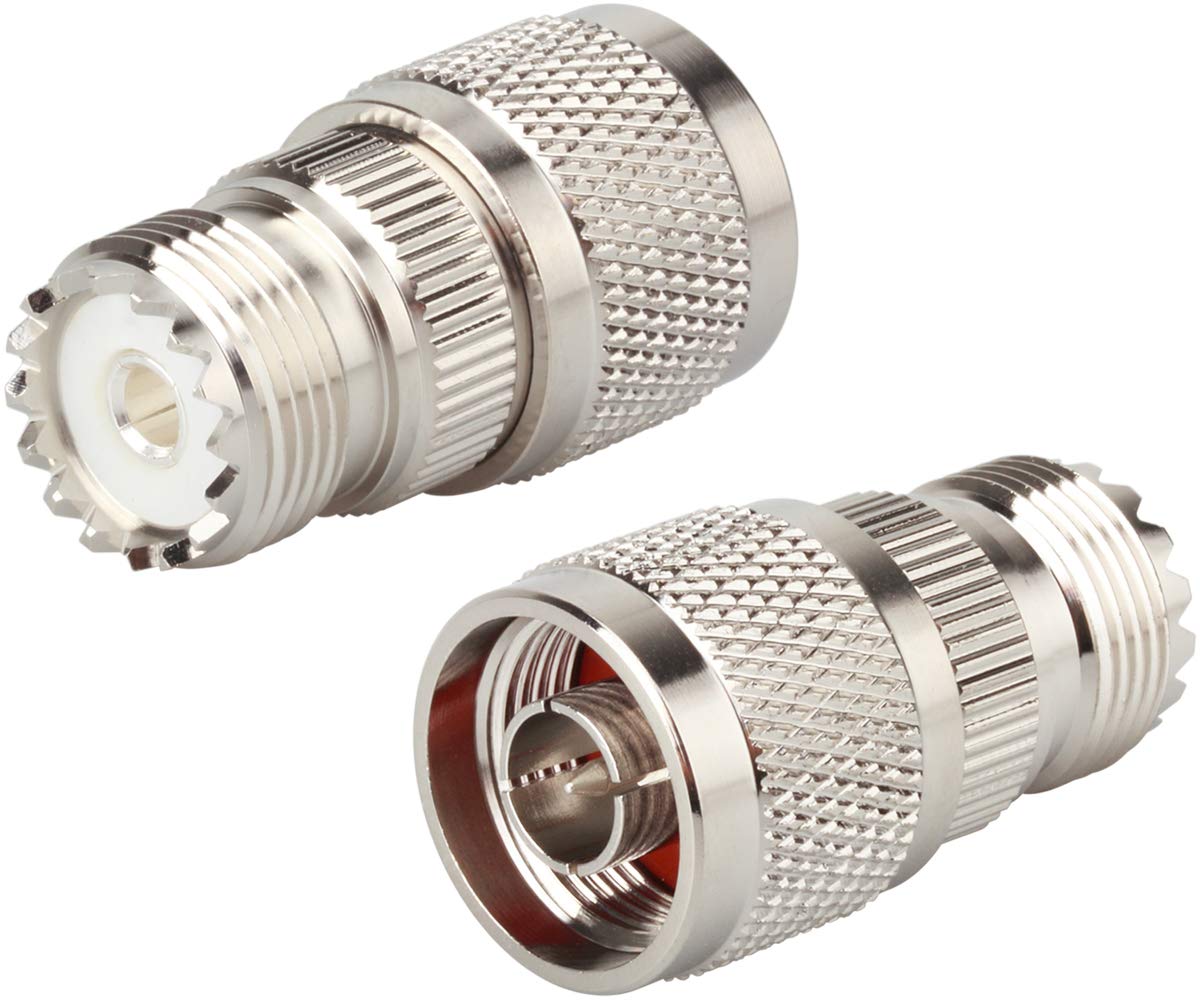

GIMILINK N Male to UHF Female SO-239 SO239 Changer Adapter 50 Ohm [2-PACK]
Electrical Specifications
-Input Impedance: 50Ω
-Frequency Range: DC - 300 MHz (0-300 MHz)
-Durability: ≥ 500 cycles
-Insulation Resistance: ≥ 5000MΩ
-Rated Voltage: 750V
-Contact Resistance: Center conductor ≤ 5mΩ Outer conductor ≤ 5mΩ
Mechanical & Environmental
-Connector Type A: N Type Male
-Connector Type B: UHF Female
-Shell/Body: Nickel Plated Brass (HPb59-1)
-Insulator Material: PTFE
-Contact Pin: Silver Plated Brass (HPb59-1)
-Temperature Range: -55 to +155ºC
Package Content
-2 x N Male to UHF SO-239 SO239 Female Adapter 50 Ohm
Electrical Specifications
-Input Impedance: 50Ω
-Frequency Range: DC - 300 MHz (0-300 MHz)
-Durability: ≥ 500 cycles
-Insulation Resistance: ≥ 5000MΩ
-Rated Voltage: 750V
-Contact Resistance: Center conductor ≤ 5mΩ Outer conductor ≤ 5mΩ
Mechanical & Environmental
-Connector Type A: N Type Male
-Connector Type B: UHF Female
-Shell/Body: Nickel Plated Brass (HPb59-1)
-Insulator Material: PTFE
-Contact Pin: Silver Plated Brass (HPb59-1)
-Temperature Range: -55 to +155ºC
Package Content
-2 x N Male to UHF SO-239 SO239 Female Adapter 50 Ohm
