Description
Description

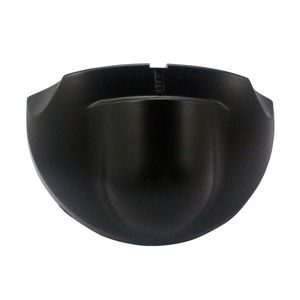

This is a universal microwave motion sensor. it's widely used in Automatic doors,elevators in Public places like Supermarket, ATM, Airport etc. It's made with Sophisticated Motion Tracking Feature
24.125GHz Microwave sensor Technology
Adjustable settings to optimize sensor for all automatic door applications
Adjustable sensor detection area by right-left, up-down direction
Specification
Technology: Microwave and microprocessor
Transmitter Frequency: 24.125Ghz
Transmitter radiated power: <20 dBm EIRP
Transmitter power density: <5mW/cm2
Maximum mounting height: 3M
Tilt angles: 0-90Degree Vertical and -30-30Degree Lateral
Detection Field(mounting height=2.2m): 4m(W)x2m(D)
Detetion mode: Motion
Minimum speed 5cm/s(Measured in the sensor axls)
Supply voltage: 12V-24V AC/DC+30%-10% (not include)
Mains Frequency: 50-60Hz
Power consumption: <2W(VA)
Output Replay: 42V AC-60V DC
Hold Time: 0.5s
Temperature Range:-20Degree- +55Degree
Degree of protection: Ip54
Color Black Color
Dimension 120 x 80 x 50mm
Weight 0.22kg
Length of cable 2.5m
In the box
1 x Microwave Motion sensor(Black)
1 x 2.5m Connecting Cable
2 x Mounting Screws
1 x English User Manual
This is a universal microwave motion sensor. it's widely used in Automatic doors,elevators in Public places like Supermarket, ATM, Airport etc. It's made with Sophisticated Motion Tracking Feature
24.125GHz Microwave sensor Technology
Adjustable settings to optimize sensor for all automatic door applications
Adjustable sensor detection area by right-left, up-down direction
Specification
Technology: Microwave and microprocessor
Transmitter Frequency: 24.125Ghz
Transmitter radiated power: <20 dBm EIRP
Transmitter power density: <5mW/cm2
Maximum mounting height: 3M
Tilt angles: 0-90Degree Vertical and -30-30Degree Lateral
Detection Field(mounting height=2.2m): 4m(W)x2m(D)
Detetion mode: Motion
Minimum speed 5cm/s(Measured in the sensor axls)
Supply voltage: 12V-24V AC/DC+30%-10% (not include)
Mains Frequency: 50-60Hz
Power consumption: <2W(VA)
Output Replay: 42V AC-60V DC
Hold Time: 0.5s
Temperature Range:-20Degree- +55Degree
Degree of protection: Ip54
Color Black Color
Dimension 120 x 80 x 50mm
Weight 0.22kg
Length of cable 2.5m
In the box
1 x Microwave Motion sensor(Black)
1 x 2.5m Connecting Cable
2 x Mounting Screws
1 x English User Manual
