The optimal parking aid - More safety and comfort for you

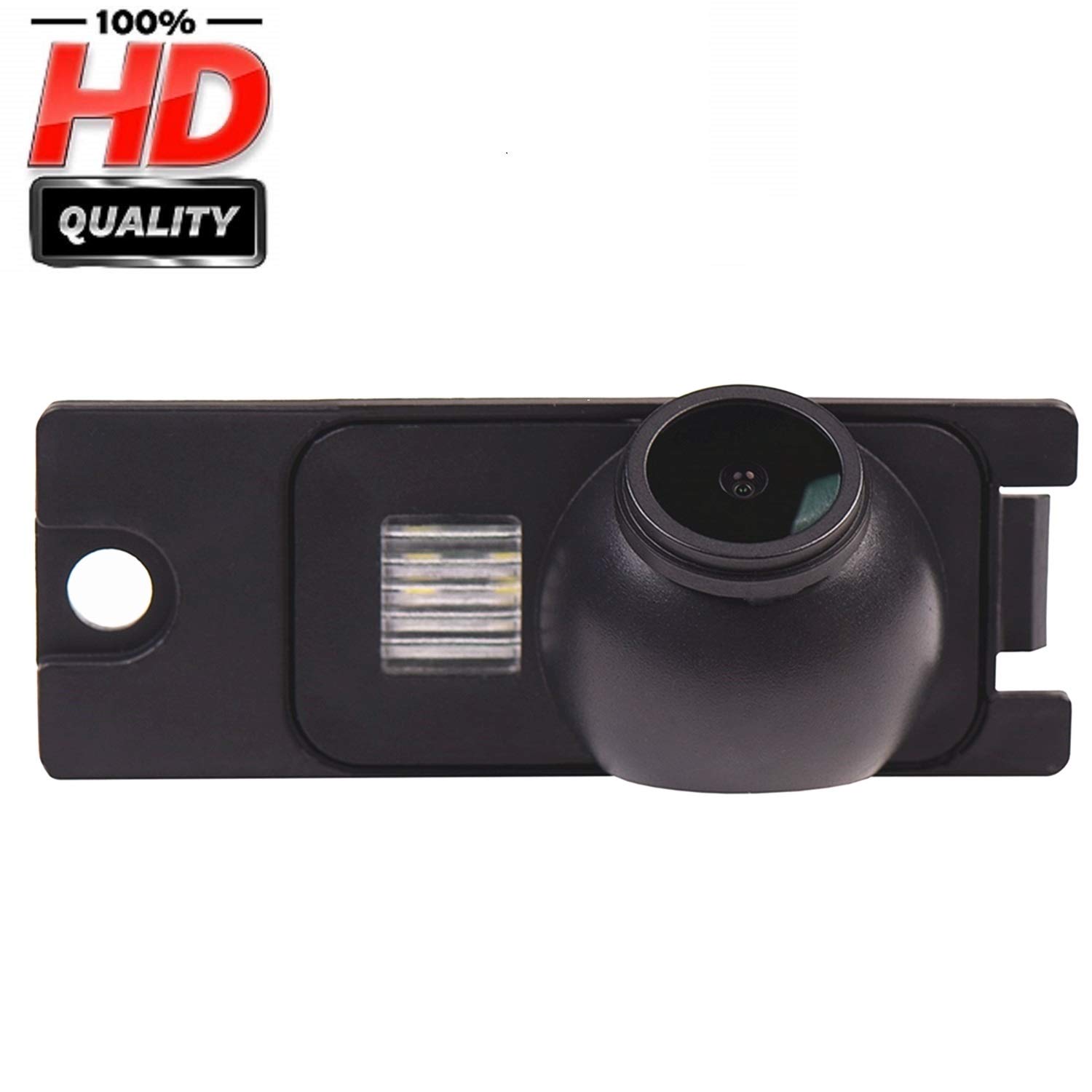

Our easy-to-install rear view camera can be easily retrofitted by replacing the license plate light, thereby a particularly inconspicuous installation is possible and the original appearance of the vehicle is maintained.
compatibility
Volvo S90 S80L /S40L/S80/S40/S60/V60/XC90/XC60/C70/S60L/ V50 V40R/ XC 70 Volvo C30
Volvo S40 | S40L (2004 - 2012)
Volvo S60 (2011 - Onwards)
Volvo S80 | S80L (1998 - Onwards)
Volvo V50 (2004 - 2012)
Volvo V60 (2011 - Onwards)
Volvo V70 (2008 - 2012)
Volvo C70 (2006 - Onwards)
Volvo XC60 (2008 - 2011)
Volvo XC90 (2003 - 2011)
Image reproduction of rear view camera
The video signal is transmitted via the included video cable and so to a monitor, a retrofit navigation system (eg, Pioneer, Sony, Alpine , Kenwood, etc.), or via rear view camera when -Interface (optional) directly on the factory navigation system engaging the reverse gear automatically displayed on the navigation system.
power supply
Power is supplied via the 12V port on your car reversing light, so the camera automatically turns on when reverse gear.
Attention, please note:
Please check before buying whether size specifications and attachment points of the rear view camera with which your vehicle match.
Technical specifications
- Video output (RCA / RCA): 1.0 Vp-p composite video 75ohm
- Operating Voltage: 12V DC
- Cable length: 5 meters
- Colour: black / transparent
- Colour resolution: 1000 TV lines
- Video standard: NTSC
- Distance lines: Yes
- Protection class: IP68
