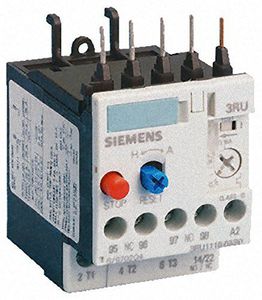

Technical Specifications: Adjustment range: 0.7 - 1 A · Contact type: 1 normally open contact/1 normally closed contact · Dimensions: (L x W x H) 68 x 45 x 87 mm · RoHS compliant: yes · Size: S00 · Specification: Overload relay · Type: 3RU1116-0JB0

Description: General description: The thermal overload relay 3RU11 has been designed for the current-dependent protection of consumers with normal start-up against impermissible high heat-up because of overload or phase failure. In case of an impermissible heat-up the integrated auxiliary switch (1S + 1Ã-) switches off the motor via the motor contactor (e.g. 3RT10). Main features: For installing contactor and individual setup (with connection carrier), overload and phase-failure protection, manual and automatic RESET, switching status indicator, TEST-function, STOP-key, integrated covering that can be sealed, tripping class CLASS 10, climate-proof, conforms to IEC 60947-4-1, IEC60947-5-1 and DIN VDE0660, contact-proof according to DIN VDE0106 Part 100, extremely long life and maintenance free.
