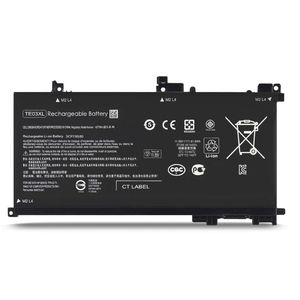

BatteryMon TE03XL Battery for HP OMEN 15-AX000 15-AX001ns 15-AX033dx 15-AX210nr 15-AX250wm, Pavilion 15 UHD 15-BC000 15-BC012tx 15-BC013tx Notebook, P/N: HSTNN-UB7A 849570-541 849910-850 -11.55V 61Wh

notes the following video depicts a specific configuration of the notebook the same removal and replacement procedures apply to all configurations of the notebook warning to avoid personal injury and damage to the product use extreme care not to puncture twist or crack the battery an internal puncture or rupture to the battery has the potential to cause a short which may result in a thermal event before you begin remove the base enclosure removal disconnect the battery cable from its connector on the system board remove the battery cable from the routing channel on the battery remove the four four millimeter p1 Phillips head screws that secure the battery to the top cover lift the rear edge of the battery off of the alignment pins on the top cover and slide it out from under the retention tabs replacement towed the battery under the retention tabs on the top cover and lower it onto the
