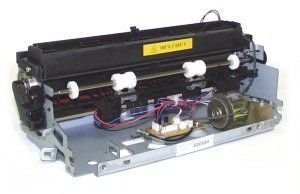

FUSER ASM, DELL M5200 COMPATIBLE, 115V

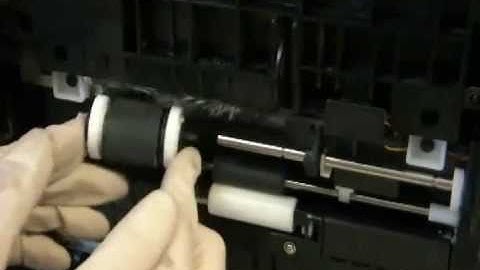

to reduce jams and through print-quality and extend the working life of your Dell 1815 dn you should replace diffuser maintenance kit every 70,000 pages the fuser maintenance kit part number d1 8 1 5 - z 1 includes the fuser transfer roller and pickup roller so let's start with diffuser first power off and unplug the machine the fuser will be hot so give it some time to cool down open the rear door unhook the blue plastic door stopper remove the four screws and the fuser assembly pull the fuser out right side first insert the new fuser and screw in the four screws hook the door stopper back in place and close the rear door open the front door and remove the print cartridge there's a blue plastic tab you must push and hold forward to release the right side of the transfer roller wearing gloves lift and remove the old transfer roller slide the left side of the new roller in place then pre
