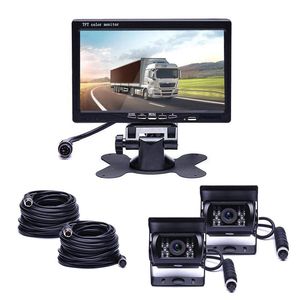

Rear View Monitor Camera Kit

7" Color TFT LCD Monitor

480 x 234 pixels

Screen Ration 16:9

Power Consumption : Max 6W

Allinone power cable

Style:4 PIN

Effective pixel:NTSC:510(H)X492(V); PAL:500(H)X582(V)

View angle: 120°

Video Output:1.0Vp-p75Ω

Voltage: DC12-24V

Dimension: 89(W) x 53(H) x 48(D)mm

Technical Details:

1.The TFT SCREEN has the switches to change between normal to mirrored image of the 2 cameras.

2.Rear view camera is turned on automatically when vehicle is put on reverse gear.

3.Lightweight, 16:9 wide-angle view 7" TFT LCD color monitor with remote controller.

Reverse using features:

1.Auto switching when reversing Under power-on condition. When reverse gear is on, the system automatically switches from DVD/VCD video to backup camera video. And when parking is finished, it will switch back automatically, which can ensure parking safty.

2.AV signal auto detecting power on/off Under power-off condition. When reverse gear is on, the system automatically starts to search for the camera signal and display backup video.

Features:

1.CCD camera with 2.1mm wideangle lens,Offers a super wide field of view angle at 120.You can see more areas by using 2.1mm lens.

2.Builtin 18 IR LEDs for over 20ft nightvision view.

3.Heavyduty 10M (33ft) video + power cable with a waterproof aerospacetype connector.

Package:
