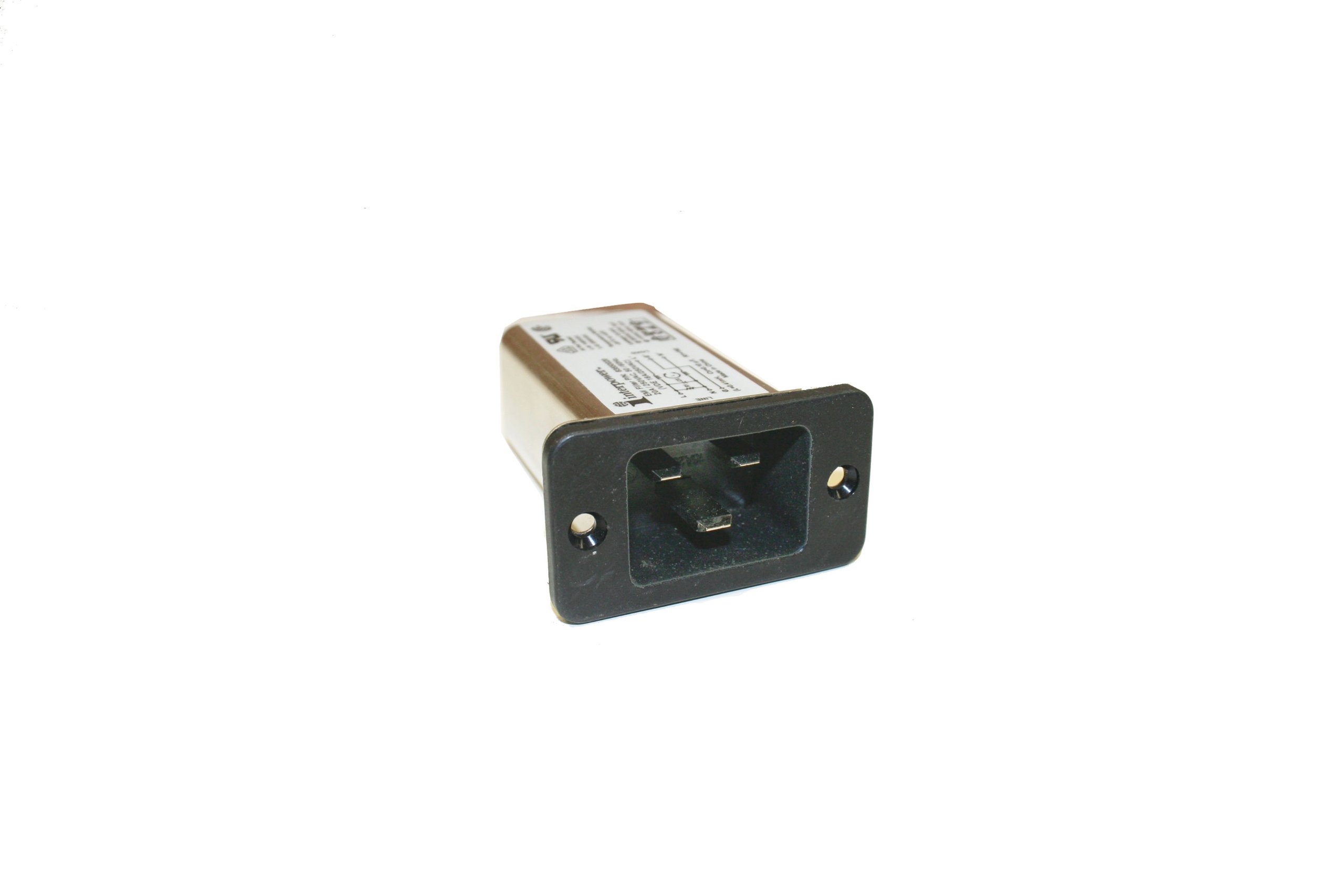

This Interpower 83550020 two-function medical grade power entry module, in black, has an International Electrotechnical Commission (IEC) 60320 C20 power inlet and an electrical filter. It has an international current and voltage rating of 16 amps at 250 VAC, and a North American current and voltage rating of 20 amps at 250 VAC. This module has a nickel-plated housing and tin-plated brass terminals for resistance to corrosion, and a thermoplastic inlet for electrical and thermal insulation. Its temperature range is -25 to +40 degrees C. The module has a built-in electronic filter that reduces electromagnetic interference (EMI) in the bandwidth range of 100 KHz to 30 MHz. A screw mount enables secure mounting to a panel, and three 6.3 mm quick disconnects accommodate conductors with matching wire terminals. The module measures 30.7 x 53.2 x 81 mm (H x W x D). (H is height, the vertical distance from bottom to top; W is width, the horizontal distance from left to right; D is depth, the vertical distance from front to back.) It has an Underwriters Laboratories (UL) 94 V-0 flammability rating, meets Restriction of Hazardous Substances (RoHS) requirements, is certified by the Verband der Elektrotechnik (VDE) and the Canadian Standards Association (CSA) for quality assurance, and is UL Recognized. This two-function screw mount power entry module is suitable for medical and other low-leakage electrical applications, with a matching connector.
| Specifications | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Color | Black | ||||||||||||
| Material | Nickel-plated housing, thermoplastic inlet | ||||||||||||
| Mounting style | Screw mount | ||||||||||||
| International current and voltage rating | 16 amp at 250 VAC | ||||||||||||
| North American current and voltage ratings | 20 amp at 250 VAC | ||||||||||||
Operating frequencyInterpower 83550020 Two Function Medical Grade Accessory Power Module, C20 Inlet, Filter, 20A Current Rating, 250VAC Voltage RatingCurrent Price $49.48 Average $32.74 Min Price $9.27 Max Price $52.1 Price dynamics 34% Description This Interpower 83550020 two-function medical grade power entry module, in black, has an International Electrotechnical Commission (IEC) 60320 C20 power inlet and an electrical filter. It has an international current and voltage rating of 16 amps at 250 VAC, and a North American current and voltage rating of 20 amps at 250 VAC. This module has a nickel-plated housing and tin-plated brass terminals for resistance to corrosion, and a thermoplastic inlet for electrical and thermal insulation. Its temperature range is -25 to +40 degrees C. The module has a built-in electronic filter that reduces electromagnetic interference (EMI) in the bandwidth range of 100 KHz to 30 MHz. A screw mount enables secure mounting to a panel, and three 6.3 mm quick disconnects accommodate conductors with matching wire terminals. The module measures 30.7 x 53.2 x 81 mm (H x W x D). (H is height, the vertical distance from bottom to top; W is width, the horizontal distance from left to right; D is depth, the vertical distance from front to back.) It has an Underwriters Laboratories (UL) 94 V-0 flammability rating, meets Restriction of Hazardous Substances (RoHS) requirements, is certified by the Verband der Elektrotechnik (VDE) and the Canadian Standards Association (CSA) for quality assurance, and is UL Recognized. This two-function screw mount power entry module is suitable for medical and other low-leakage electrical applications, with a matching connector.
| |||||||||||||
