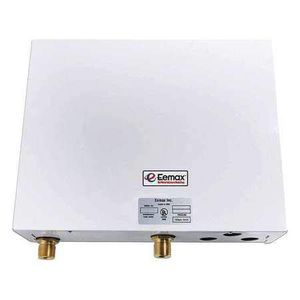

Tankless Water Heater, For Use With Emergency Eyewash, Vertical Mount, Overall Height 15 In., Overall Width 13 In., Overall Depth 5 In., Wattage 24,000, Voltage 480, Phase 3, Max. Amps 29, Wire Size 10 AWG, Elements Replaceable Nickel Chrome Cartridge Insert
Specification:
- Phase: 3
- Temp. Rise @ 4.0 GPM: 41 Degrees F
- Temp. Rise @ 2.5 GPM: 66 Degrees F
- Mount: Vertical
- Wire Size: 10 AWG
- Voltage: 480
- Water Output Temp.: 90 Degrees F
- Wattage: 24,000
- Cabinet Material: Metal
- Flow Range: 0.07 to 5 gpm
- Overall Width: 13"
- Temp. Rise @ 1.5 GPM: 73 Degrees F
- Item: Tankless Water Heater
- Includes: Compression Fittings
- Standards: UL
- Overall Height: 15"
- Input Connection: 1/2" Compression
- Output Connection: 1/2" Compression
- Elements: Replaceable Nickel Chrome Cartridge Insert
- Overall Depth: 5"
- Max. Amps: 29
- Min. Flow Activation: 0.70 gpm
- For Use With: Emergency Eyewash
- Connection Location: Plumbing Bottom, Electrical Lower Right
