Description
INRO

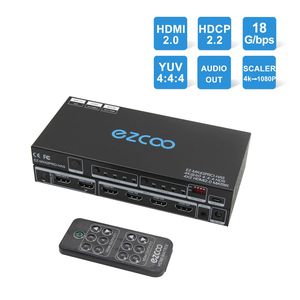

4K HDMI Matrix Switch 4x2 distributes four HDMI sources to two HDMI displays reliably, supports HDMI2.0 4K@60Hz 4:4:4 18Gbps 8bit HDR Dolby Vision, firmware upgrade via micro-USB port. HDMI OUT 1(A) can down-scale 4K to 1080P, 4K and 1080P TV can play together. Extra SPDIF Optical 5.1CH audio breakout offer high-end audio experience without TV connection.
1. Editable EDID via DIP Switch, supports 4K HDR TV video and 7.1CH Soundbar audio simultaneously. Also simplify matrix operation step.
2. Supports 4K HDR TV and 1080p Capture Card work simultaneously.
3. To get both of Dolby Atmos and Dolby Vision in sync, pls ensure TV and Receiver support them both. Matrix EDID just pass through signal, not create.
4. HDMI Manual Scaler Setting via DIP also.
5. DIP 1 control HDCP, DIP 2 control Scaler. DIP 3, 4 control EDID.
.SPEC.
HDMI Video: HDMI 2.0,HDCP 2.2,4K 60Hz 4:4:4 8bit 18Gbps HDR Dolby Vision, 4K 60Hz 4:2:2 10bit HDR10,HDR Dolby Vision, 4K 2K/1080p/1080i,24bit/30bit,36bit deep color
HDMI Audio: Dolby Digital 7.1CH Audio,Dolby Atmos,Dolby TrueHD,DTS:X,DTS-HD Master,LPCM 2.1/5.1/7.1CH
HDMI Cable: HDMI 2.0 standard cable, <15m AWG26
Firmware: Upgradeable Matrix Switcher 4 IN 2 OUT
Power Adapter: Input AC 100V-240V/ 50Hz,60Hz; Output DC 5V/2A
High compliance with Soundbar,set-top boxes, Blu-ray DVD,cable satellite box, PC laptop,HD camera,HD DVR, etc. To get stable HQ picture, pls use less than 15mtr qualified HDMI 2.0 cable. Threaded power adapter to prevent power loss; Low Heat. Solid build quality.
Based on Return Order Research, the most of buyers who returned it, due to they don` t get correct way to use matrix or don` t use HDMI 2.0 standard cable. PLS read Installation Instruction, User Manual on product page carefully when you are in trouble. It can help you.
NOT UP SCALER. NOT AUTO SWITCH. NO CEC.
