*One USB-C female port support signal input.

*One HDMI output via USB-C Alt Mode support up to 4K@30Hz.

*One HDMI output via DisplayLink USB Mode support up to 1920X1080P@60Hz.

*Mini DP output via DisplayLink USB Mode up to 2560X1600@60Hz.

*Five USB3.0 support 5Gbps transmission,downward compatible USB2.0.

*RJ45 Gigabit Ethernet support 10/100/1000Mbps bandwidth.

*SD/TF card slot Support SD3.0,Up to 2TB.

*Stereo for both microphone and headphone.

*One USB-C female charging port for Macbook and other USB-C devices.

* Support working on iOS and windows systems.

(1)On iOS system,plug HDMI cable of the 4K TV into HDMI 4K port (USB-C Alt Mode) of the product,computer detects the video signal,and the TV displays 3840*2160@30HZ image;Plug HDMI cable of the 1080P TV into HDMI 2K port (DisplayLink).Plug MINI DP cable into MINI DP port (DisplayLink).The 4K display will flash and re-detect.The HDMI 4K port outputs 4K.The image signal,HDMI 2K and MINI DP simultaneously output 1080P image signals.The MacBook is a three-monitor that outputs the same picture at the same time only in mirror mode.

(2)On windows system,plug HDMI cable of the 4K TV into HDMI 4K port (USB-C Alt Mode),computer detects the video signal,and the TV displays 3840*2160@30HZ image;Plug HDMI cable of the 1080P TV into HDMI 2K port (DisplayLink).Plug MINI DP cable into MINI DP port (DisplayLink).The 4K display will flash and re-detect.The 4K image signal,HDMI 2K and MINI DP simultaneously output 1080P image signals.Windows system computer is three monitors that simultaneously output the same picture in mirror mode;Extended mode settings:right click→display settings→multi-monitor→select the expansion/copy option on the detected display.

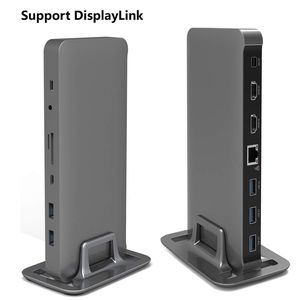

USB-C Docking Station

Aluminum Stand

Type C to Type C cable

Type C to Type A cable
