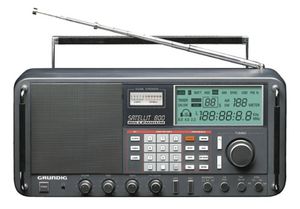

Take one look at the Grundig Satellit 800 AM/FM shortwave radio and you'll know it means serious business. From the easy-to-read liquid crystal display and traditional analog signal strength meter, to the silky-smooth tuning knob that creates absolutely no audio muting, this radio defines shortwave at its best. Continuous frequency coverage of 100-30,000 KHz gives you broadcasts from every corner of the globe. Even listen to ham radio operators, or planes as they take off and land at your local airport. Design and Controls
Weighing in at a hair over 14 pounds, the Satellit 800's sleek, modern cabinet is 20.5 inches across and eight inches deep. The sturdy cabinet has metal guards, much like a rack-mounted component. A built-in antenna on the top of the device handles AM, FM and shortwave reception. To the right of the full-range speaker on the front of the unit, a massive 6 x 3.5-inch multifunction LCD panel displays all the radio's functions and tuning parameters. The display offers up to 100 Hertz accuracy on the AM, SW and VHF aircraft bands. An evenly lit backlight enables display viewing under all lighting conditions. To the left of the screen is an analog signal strength meter that helps achieve perfect tuning accuracy. A keypad below the LCD screen allows illustrious shortwave listeners to directly enter their shortwave band of choice, giving instant access to known broadcasts. Meanwhile, a selectable automatic gain control (AGC) offers fast and slow modes.
Tuning options abound; you can choose from a variable-rate tuning knob, the aforementioned direct keypad frequency entry method, up/down buttons, or programmable memory scan. And when you have your station locked in, you can tweak the sound quality with separate, continuous bass and treble tone controls. A bridged type audio amplifier provides high output power, even when the radio is operating on battery.
Tuning and Bands
The Satellit 800 is designed to receive a broad range
