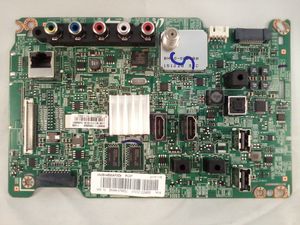

Samsung - Samsung Main Board BN41-02245A BN94-07455J #M10417 - #M10417

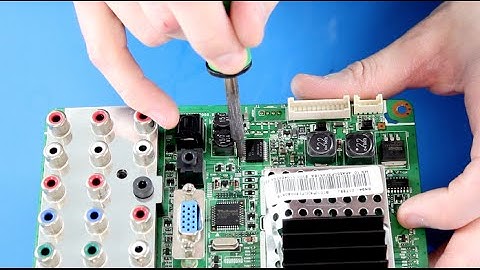

This repair kit works for many different TV model numbers. We have included a full list of those model numbers in the video description. This repair kit will fix the following symptoms. If your TV audio does not work on any of the inputs. If your TV turns on briefly, has no video on the screen and shuts off and then comes back on and then shuts off and repeats those steps over and over again. If your TV does not turn on and if the red power LED blinks continuously. The large chip in the image is the audio chip that fixes the audio input problems. The other integrated circuit and capacitor, repair the other symptoms that we just described. There are three different component at that we will replace on this board. Two of the components are on the back side of the board. And one component is on the front. I will start by replacing the audio chip first. I will begin by using my tweezers and
