Description
Basic Information
Chipset:By CPU
Size:155 x 127 x 48mm
Power Consumption: 10W
Operating Temp.:0~50 Degrees Celsius
Non-Operating Temp.:-20~80 Degrees Celsius
Processor Graphics:Intel HD Graphics
Onboard LAN:4 x Intel I211-AT Gigabit LAN
Onboard CPU:Intel Celeron BayTrail SOC J1900 Quad Core Processor 2.0GHz,Up To 2.42GHz 2M Cache
Memory:2GB DDR3L SO-DIMM 1333/1600 MHz 1.35V, 1 x Memory Slot, Up to 8GB Memory
Hard Disk:256GB mSATA SSD - Support 2.5" SATA HDD
Wireless:Support

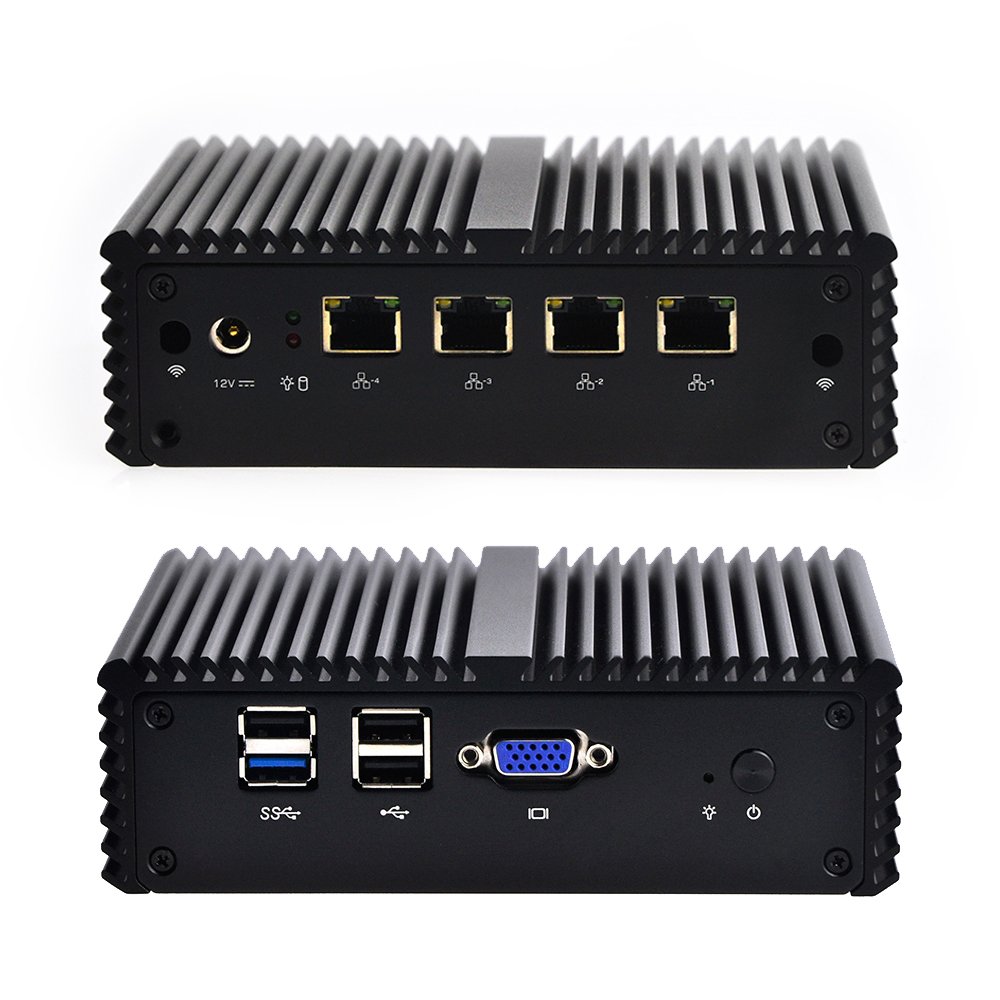

Front I/O:
1 x Power on/off Button
1 x Power LED
3 x USB 2.0
1 x USB 3.0
1 x VGA
Internal Connectors:
1 x Minipcie (For mSATA SSD)
1 x Minipcie (For USB Device)
1 x DDR3L SO-DIMM Memory Slot
1 x SATA
1 x SATA Power
1 x Automatically Boot Jumper
1 x RS232 Header (Optional)
1 x SIM Card Slot (Optional)
Rear I/O:
1 x DV 12V Input
1 x Power LED
1 x HDD LED
4 x RJ-45
1 x WiFi (For USB Device)
Package Included:
1 x Mini PC
1 x Screws
1 x Power Supply
1 x VESA Mount Bracket
Please Note:
1) It only supports AP-mode.
2) It will be come with Pre-installation Unactivated Windows 7 in English for test without any Windows license. You also can install OS and software package by yourself. Press F11 key boot from USB Drive, press Delete key enter into BIOS.
3) Mini-PCIE cann't support WiFi and 3G/4G module at the same time in this computer. Half-length Mini-PCIE is only for WiFi, full-length is only for 3G/4G. It is Half-length by default.
Warranty:
1) Warranty is one year from you purchase.
2) This device fits for a LAN or WAN router, firewall, proxy, WiFi access point, VPN appliance, DHCP Server, DNS Server, IDS/IPS, etc.
Qotom-Q190G4N-S08 Industrial Mini Computer Celeron Processor J1900 CPU 2.0GHz Quad Core (2G RAM + 256G SSD)
Price is below average
Current Price
$212.56
Average
$223.92
Min Price
$212.56
Max Price
$288.88
Price dynamics
5%
Description
Basic Information
Chipset:By CPU
Size:155 x 127 x 48mm
Power Consumption: 10W
Operating Temp.:0~50 Degrees Celsius
Non-Operating Temp.:-20~80 Degrees Celsius
Processor Graphics:Intel HD Graphics
Onboard LAN:4 x Intel I211-AT Gigabit LAN
Onboard CPU:Intel Celeron BayTrail SOC J1900 Quad Core Processor 2.0GHz,Up To 2.42GHz 2M Cache
Memory:2GB DDR3L SO-DIMM 1333/1600 MHz 1.35V, 1 x Memory Slot, Up to 8GB Memory
Hard Disk:256GB mSATA SSD - Support 2.5" SATA HDD
Wireless:Support
Front I/O:
1 x Power on/off Button
1 x Power LED
3 x USB 2.0
1 x USB 3.0
1 x VGA
Internal Connectors:
1 x Minipcie (For mSATA SSD)
1 x Minipcie (For USB Device)
1 x DDR3L SO-DIMM Memory Slot
1 x SATA
1 x SATA Power
1 x Automatically Boot Jumper
1 x RS232 Header (Optional)
1 x SIM Card Slot (Optional)
Rear I/O:
1 x DV 12V Input
1 x Power LED
1 x HDD LED
4 x RJ-45
1 x WiFi (For USB Device)
Package Included:
1 x Mini PC
1 x Screws
1 x Power Supply
1 x VESA Mount Bracket
Please Note:
1) It only supports AP-mode.
2) It will be come with Pre-installation Unactivated Windows 7 in English for test without any Windows license. You also can install OS and software package by yourself. Press F11 key boot from USB Drive, press Delete key enter into BIOS.
3) Mini-PCIE cann't support WiFi and 3G/4G module at the same time in this computer. Half-length Mini-PCIE is only for WiFi, full-length is only for 3G/4G. It is Half-length by default.
Warranty:
1) Warranty is one year from you purchase.
2) This device fits for a LAN or WAN router, firewall, proxy, WiFi access point, VPN appliance, DHCP Server, DNS Server, IDS/IPS, etc.
