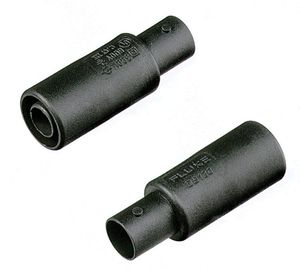

Fluke BB120 2 Piece Shielded Banana to Female BNC Adapter Set, 600V rms Voltage, For ScopeMeter 120 Series and Fluke-43B Power Quality Analyzer

the fluke fev 100 evse test adapter simulates the presence of an electrical vehicle to enable you to test the function and safety of an ac level 2 charging station the test cable is the interface for cables of stations that have a type 1 plug first perform a pre-test grounding safety check to ensure the charging station is correctly wired and safe and that the protective earth is functioning properly no led illumination means everything is working correctly the control pilot switch allows simulations of various charging states for output voltage turn the switch to charging mode position c connect an 87.5 multimeter to the l1 and l2 n terminals to measure output voltage the l phase red led will illuminate you should see approximately 240 volts on the multimeter screen this is the corresponding voltage energizing the station the sum of the voltages from each phase simulate errors like an
