Description

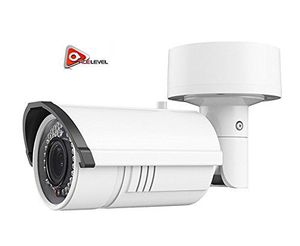

Camera Technology: IP / Network ● Camera Housing: Bullet ● Image Sensor: 1/3" Progressive Scan CMOS ● Min. Illumination: 0.01Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.4, AGC ON), 0 Lux w/ IR ● Shutter Speed: 1/3-1/10,000 s ● Slow Shutter: Support ● Lens: 2.8-12mm @ F1.4 ● Lens Mount: Φ14 ● Day & Night: IR cut filter w/ auto switch ● DNR: 3D DNR ● Wide Dynamic Range: 120Db ● Video Compression: H.264/ MJPEG/ H.264 Zip+ ● H.264 Type: Main Profile ● Video Bit Rate: 32 Kbps ~ 16 Mbps ● Audio Compression: G.711/G.722.1/G.726/MP2L2 ● Audio Bit Rate: 64 Kbps (G.711)/ 16 Kbps (G.722.1)/ 16 Kbps (G.726)/ 32-128 Kbps (MP2L2) ● Max. Resolution: 2688×1520 ● Frame Rate: 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps (1280×720); 50Hz: 20fps (2688×1520), 25fps (1920×1080), 25fps (1280×720) ● Image Setting: Rotate Mode, Saturation, Brightness, Contrast; Sharpness adjustable by client software or web browser ● BLC: Support, zone configurable ● ROI Codec: Support ● Network Storage: NAS (Support NFS, SMB/ CIFS), ANR ● Alarm Trigger: Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception ● Protocols: TCP/ IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour ● General: One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access ● Standard: ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI ● Communication Interface: 1 RJ45 10M/100M Ethernet port ● Reset: Yes ● Working Temperature/ Humidity: -22°F~140°F (-30°C~60°C); Humidity 95% or less (non-condensing) ● Power Supply: DC12V ± 10%, PoE (802.3af) ● Power Consumption: Max. 5.5W (Max. 7.5 W w/ IR cut filter on) ● IR Range: Approx. 100' (30 meters) ● Weather Proof Ratings: IP66 ● Dimensions: 3.7"×4.1"×10.2" (95×105×258.6 mm) ● Weight: 2.65lbs (1200g)
