CDMA 850MHz Cell Phone Signal Booster Repeater Amplifier Yagi Antennas Kit BLUE

Before purchase, please make sure your phone network's frequency is compatible with this signal booster. Return is NOT accepted if the signal booster is not effective for your phone network. Please feel free to contact us if you need help choosing signal boosters.

Specification:

Brand new

Frequency Range: 824-849MHz (Up Link); 869-894MHz (Down Link)

Maximum gain: 60db(Up Link); 65db(Down Link)

Standard Output Power: 26dbm～29dbm(Up Link); 25dbm～27dbm(Down Link)

Standard Input Power: ﹣32dbm～﹣27dbn(Up Link) ;﹣38dbm～﹣37dbn(Down Link)

Noise Figure: ≤5db

Repeater Coverage: 50 to 800 M²

Return Loss: ≤﹣18db

Input Power: AC 140V - 265V, 50/60Hz

Stray Radiation: ≤﹣36dbm

The repeater works with two antennas (included in the kit).

One is the indoor antenna which communicates with your cell phone or laptop data card,

and another one is the outdoor antenna which communicates with the cell tower

When the indoor antenna receives the signal from your cell phone or data card,

the booster amplifies the signal and transmits it through the cable to outdoor antenna and then to the cell tower.

And the better the outside signal, the more coverage the indoor antenna can create

Light weight, easy to install

Mainly used in office buildings, shop-ping malls, large underground parking field, exhibition center, workshop

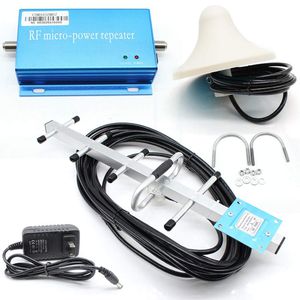

Package Included:

1pc x 850MHz Repeater

1pc x Outdoor Yagi Antenna with 10m Cable

1pc x Ceiling Antenna with 3m Cable

1pc x Charger

1pc x User Manual
