Description
Introduction:
SIM7000A is Multi-Band LTE-FDD module solution in a SMT type which supports LTE CAT-M1(eMTC) and NB-IoT up to 375kbps data transfer.
The module provides much flexibility and ease of integration for customer's application.
The package of SIM7000A is compatible with SIM900 and SIM800F. AT commands of SIM7000A are mostly compatible with SIM800F. This also maximizes investments of customers, and enables a short time-to-market.
Due to unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, telematics, asset tracking, remote monitoring , E-health, mobile pos terminals and sharing bike
Features:
-Quad-Band FDD-LTE B2/B4/B12/B13
-Control Via AT Commands
-Supply voltage range: 3.0V~ 4.3V, Typ: 3.8V
-Operation temperature: -40℃ to +85℃
-Dimensions: 24 X 24 X 2.6mm
-GNSS (GPS,GLONASS and BeiDou/Compass, Galileo, QZSS)
-USB Driver for Microsoft Windows XP/Vista/7/8
-USB Driver for Windows CE/Mobile
-USB Driver for Linux/Android
-Firmware update via USB
-TCP/IP
-PPP
-SMS
-EMAIL
-FTP/HTTP/SSL
-VoLTE*
-FOTA*
Data transfer:
-LTE CAT-M1(eMTC)
-Uplink up to 375kbps, Downlink up to 300kbps
-NB-IoT
-Uplink up to 66kbps, Downlink up to 34kbps
SMS:
-Point to point MO and MT
-Text and PDU mode
Consumption
-Power off: 7uA
-PSM: 9uA
-Sleep: 1mA
-Idle: 11mA
Interfaces:
-USB2.0 x1 (high-speed)
-UART x2 (7-wire UART and 2-wire UART interface multiplex from GPIO)
-SIM card x1 (1.8V and 3V)
-I2C x1
-GPIO x5
-ADC x1
Package Included:

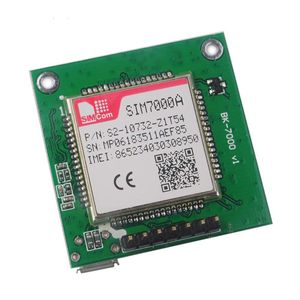

1 x SIM7000A board
SIM7000A is Multi-Band LTE-FDD module solution in a SMT type which supports LTE CAT-M1(eMTC) and NB-IoT up to 375kbps data transfer.
The module provides much flexibility and ease of integration for customer's application.
The package of SIM7000A is compatible with SIM900 and SIM800F. AT commands of SIM7000A are mostly compatible with SIM800F. This also maximizes investments of customers, and enables a short time-to-market.
Due to unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, telematics, asset tracking, remote monitoring , E-health, mobile pos terminals and sharing bike
Features:
-Quad-Band FDD-LTE B2/B4/B12/B13
-Control Via AT Commands
-Supply voltage range: 3.0V~ 4.3V, Typ: 3.8V
-Operation temperature: -40℃ to +85℃
-Dimensions: 24 X 24 X 2.6mm
-GNSS (GPS,GLONASS and BeiDou/Compass, Galileo, QZSS)
-USB Driver for Microsoft Windows XP/Vista/7/8
-USB Driver for Windows CE/Mobile
-USB Driver for Linux/Android
-Firmware update via USB
-TCP/IP
-PPP
-SMS
-FTP/HTTP/SSL
-VoLTE*
-FOTA*
Data transfer:
-LTE CAT-M1(eMTC)
-Uplink up to 375kbps, Downlink up to 300kbps
-NB-IoT
-Uplink up to 66kbps, Downlink up to 34kbps
SMS:
-Point to point MO and MT
-Text and PDU mode
Consumption
-Power off: 7uA
-PSM: 9uA
-Sleep: 1mA
-Idle: 11mA
Interfaces:
-USB2.0 x1 (high-speed)
-UART x2 (7-wire UART and 2-wire UART interface multiplex from GPIO)
-SIM card x1 (1.8V and 3V)
-I2C x1
-GPIO x5
-ADC x1
Package Included:
1 x SIM7000A board
