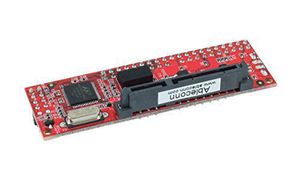

The Ableconn IDE40-SAT allows you to install a SATA drive to the motherboard with IDE/ATA connector. It's the easiest and cost effective solution to replace existing IDE drives with newer cost-effective SATA drives to your systems that are only equipped with IDE interfaces.

Features
* Connector:
- 1 x IDE (40-pin, PATA) Male (to be connected with a standard 40-pin IDE cable)
- 1 x SATA Data & Power (7 + 15 pins) (direct attach to SATA drive)
- 1 x SP4 (4-pin; floppy style small drive power) Male
* Chipset: Marvell 88SA8052
* Data transfer rate:
- Up to 150 MBps
* Jumper Selection:
- 1 x jumper for selection of Master/Slave/Cable Select modes
* Software:
- OS independent; No driver installation required
- Support Windows, Macs, and Linux
* SATA II 3Gbps controller Mini vertical Adapter Board
* Supports any type of SATA III, SATA II and SATA I Device (Blu-ray Disc, SSD, DVD, DVD-RAM, CD-ROM, CD-RW, Hard Disk)
* Convert a SATA Drive like a standard IDE/ATAPI Drive
* 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB
* Compliant with Serial ATA 2.6
* Bootable
* Jumper setting support IDE Master, Slave and Cable Select Modes
* Tag Command Queuing (Max 32 entries)
* ATA/ATAPI PIO mode data transfer
* ATA/ATAPI UDMA data transfer rate of 150, 133, 100, 66, 44, 33, 25, 16.7 MB/s
* ATA/ATAPI-7 Streaming feature set
* Fully RoHS compliant
* Made in Taiwan

Package Contents
* Ableconn IDE40-SAT IDE to SATA Hard Drive or Optical Drive Mini Adapter
* 1 x Y Power Cable (LP4 Molex to LP4 +SP4)
