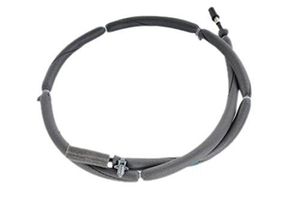

ACDelco 22847990 GM Original Equipment Radio End Antenna Extension Cable

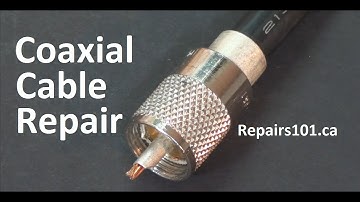

Alright so today on Repairs101 I�ve got a frayed piece of coaxial cable on a two-way radio antenna that needs repairing. OK so here�s the deal: coax is used on electronics like two-way radios, radar and something called television. Now here�s a sample I put together, really the tip should be soldered as well as the shield should be soldered to the fitting. This is what a bad installation looks like. I guess he was in a hurry or something, I don�t know. So I cleaned it up and I dismantled it. I had a heck of a time getting this plug out. (There it goes!) Obviously the wire needed to be fresh-ended. So I marked the wire for the core and the shield � just the same as the old wire. Once the end is prepped you want to slip on a shrink tube. Next I took a terminal and I bent the ring back and then I spread apart the saddle a little bit. I put it all together and spread the shield away from th
