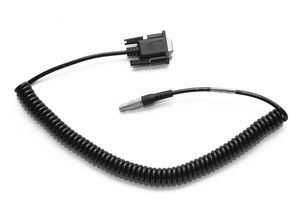

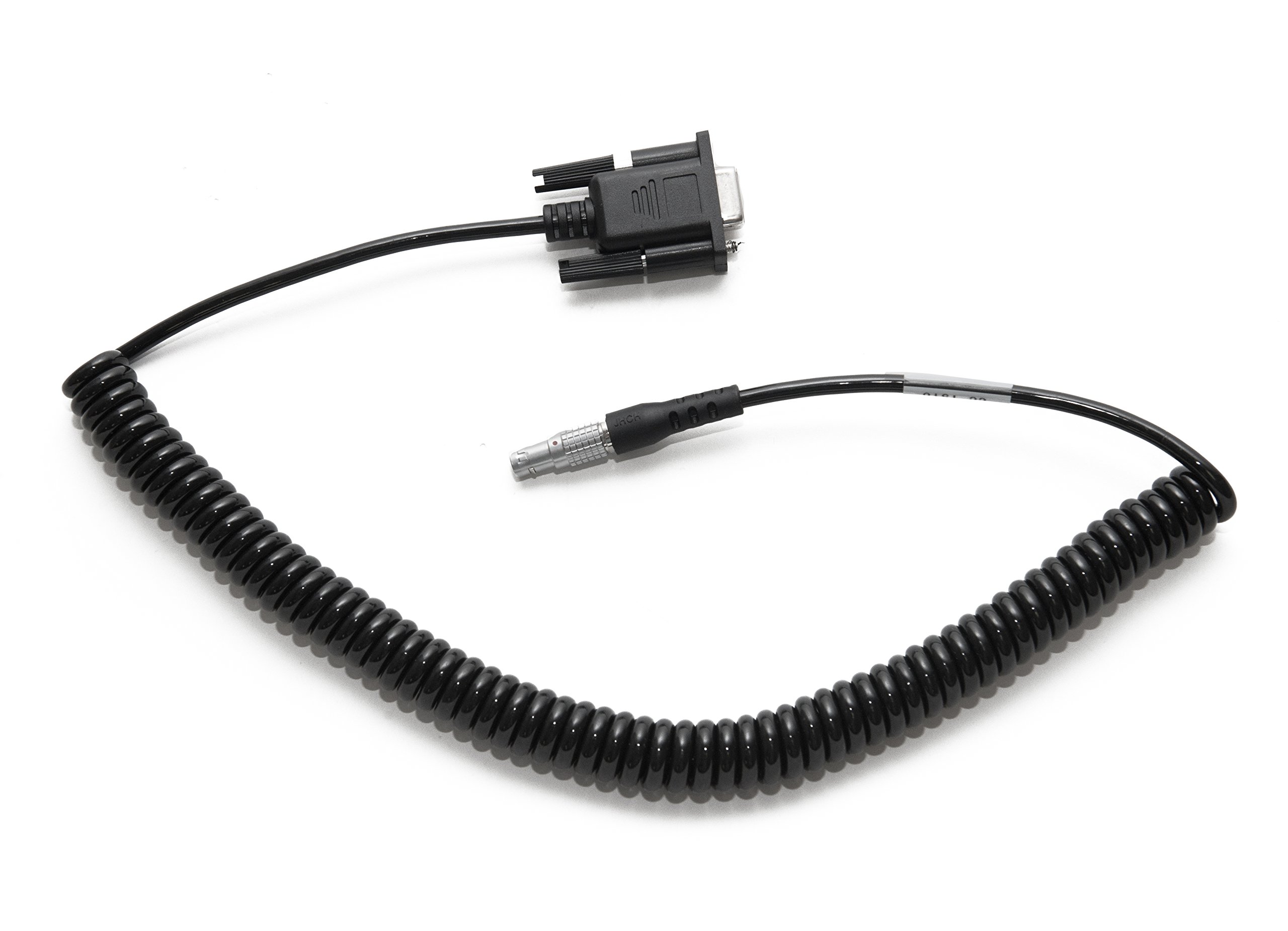

AdirPro 9 Pin to Leica and Wild Instrument Total Station and Digital Level Data Cable with standard RS232 serial port connection

civil engineering 291 surveying instructional video number two in this video you will learn how to set up and use a total station for surveying labs two and three a total station setup requires five pieces of equipment a tripod a tribe rock a total station tape measure and rod the total station needs to be accurately centered over a benchmark this slide shows a typical marker that surveyors use as a starting point in this demonstration the total station will be centered over a target drawn on a piece of paper take the tribe rock and place it on the tripod plate use the large screw under the tripod plate to fasten the tribe rock in place the tribe rock has a laser for centering the tripod over the benchmark using the laser marker move the tripod as close as possible to the benchmark loosen the clamps to adjust the lengths of the legs the top of the tripod should be adjusted to about ches
