Product  Description

Monitor Specification:

LCD size: 7inch;

Resolution:800x480;

Radio Frequency:2.4GHz;

Receiving sensitivity:-89dB;

System Format:PAL/NTSC;

Power Supply:DC7-30V, 12 recommended;

Operating temperature:-20~+70°C, RH90%;

Storage temperature: -30~+80°C, RH90%.

Camera Specification:

Inpu tVoltage:12v-24v, 12v recommended;

Operating current:

360 MA‑‑12v daytime/ 460MA-12v night；

200MA-24v daytime/ 270MA-240v night

IR distance:8~10M

Video format:PAL/NTSC

Connecter: DC

IRCUT: Built-in,auto-switch

Sensor:1/4.5''CMOS

Resolution:640x480

RadioFrequency:2.4GHz

Power：28dbm

IP Rating: IP 67

Aluminum alloy shell and waterproof design suitable for outdoor use.

Package included:

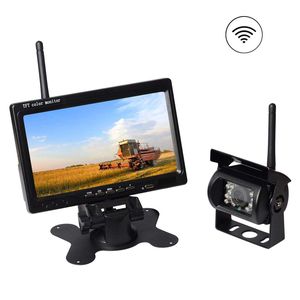

1x 7 inch LCD Monitor

1x Color Digital Cameras

2x 2.4G antennas

1x Bracket

1x double sticker

1x User Manual

1x Cigarette lighter

TroubleShooting:

NO Image or NOSignal:

Please pressV1/V2 button to adjust to AV2.

Please press LOOP button to adjust to "VIDEO CH D".

Please make sure antennas are plugged on both monitor and camera.

Please make sure monitor and camera are within signal reception range.

You can shorten the distance between monitor and camera, or adjust the angle of antennas to find the best signal reception position.
