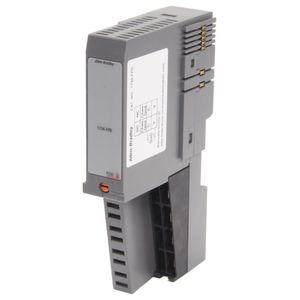

Allen-Bradley 1734-FPD Field Power Distributor Module - 1734-FPD-B

welcome back today we are continuing our discussion on point i/o as you can see in front of you I have at the same rack that we've configured in the previous lecture you will notice however a couple of differences since the beginning of the previous lecture where I mentioned a couple of different lights which were indicating different errors on the status of the module so you'll notice that the light down here is green it's also green here and we have network traffic so it's definitely communicating back to the compact logics PLC you'll also notice that the two lights for the right most modules are also green on the network side so this means that they have been properly configured and everything is ready to go in case you're wondering about this output module and the blinking red lights this is essentially a specialty module which is not only a direct output but it's also it has Diagno
