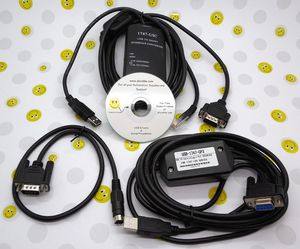

Allen Bradley 1747-UIC 1761-CBL-PM02 1747-CP3 USB Mini Combo Kit

[Music] this is an SMC 504 controller the model number is 17 47 - and on 541 if this serial port is set up for the H 485 to go online first it to have a serial cable part number 17 47 - CB 3 and the converter box part number is 17 47 - UIC first look your zero cable into the serial port of the controller and on the converter box right here the little switch make sure you set it to rs-232 the H 45 which I push it down and then look back it into your laptop okay on your laptop first go to a certain classic and then go to communications configure drivers look for the edge for edify you I see devices and new okay - by the port your USB plug into crafter first go to computer management then go to Device Manager then point right here expand it see that USB go to point 14 okay so 14 okay expand it see your controller is there now to go online in his logic 500 first go to comes then system come
