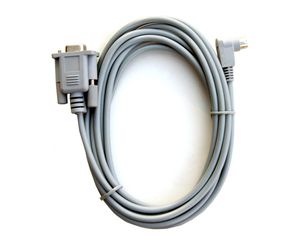

Allen Bradley Micrologix Cable with 90 Degree End 1761-CBL-PM02

today we're going to talk about selecting and configuring a 1761 CBL PMO - to communicate with an Allen Bradley micro logics PLC the micro logics 1,000 1,100 1,400 1,500 all used the same cable we have three versions of this cable a serial version with a straight connector on both ends a serial version with a ninety degree connector on the end that connects to the micro logics PLC and a USB version which is what you'll need to connect to the micro logics with most modern pcs once you have selected the proper cable connected to your PC and PLC and identify the comport if you're unsure the comport see our video on finding the comport number of your USB to serial device in Windows XP seven and eight then open ours links if you need help downloading and installing artists links and rslogix that we have a video for that all set just browse our channel and be sure to subscribe and our sleeves
