This device extracts the digital audio signal from the HDMI input and converts it to 2 channel analog stereo output or 5.1 channel Audio outputs.
Specification:
Input Port: 1 x HDMI IN, 1 x Micro USB Power Port, 3 x EDID Audio(Pass/2CH/5.1CH) Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDMI resolution :4K x 2K, 24/50/60fs/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 225MHz
Max baud rate: 6.75Gbps
Max working current: 190mA
To improve our customers experience, we posted the following three methods if you experience no sound from output.
1. Switch EDID Button
Switch the EDID audio switch in the front. Change it between 2CH, 5CH or pass.
2. Turn Off Dolby Digital Plus
Because TOSLINK (SPDIF) does not support Dolby Digital Plus, you need to turn off Dolby Digital Plus function of the input devices. Then the sound can go through the extractor.
a: Amazon Fire TV or Amazon Fire TV Stick
Settings - Display Sound - Audio - Dolby Digital Output - Dolby Digital Plus off
b: Apple TV
Settings - Audio Video - Dolby Digital - on
c: Chromecast
Chromecast plays the contents from your video source, please make sure to turn off the Dolby Digital Plus on the video source through the play devices.
Package Contents:
1 X HDMI Audio Extractor
1 X 3.5mm to RCA Stereo Audio Cable
1 x Micro USB cable
1 X User Manual
Please read the introduction of Amazon products carefully before purchasing, and If you have any questions about the order, please first contact our customer service via Amazon Mail

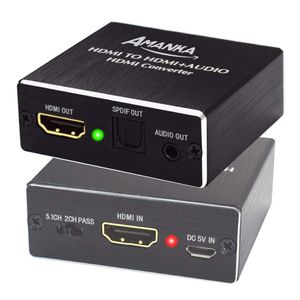

Amanka 4K HDMI Audio Extractor Converter Input HDMI To HDMI Output Optical Audio SPDIF and 3.5mm Stereo Audio Extractor for Blue-ray PC Laptop Xbox One HDTV
This device extracts the digital audio signal from the HDMI input and converts it to 2 channel analog stereo output or 5.1 channel Audio outputs.
Specification:
Input Port: 1 x HDMI IN, 1 x Micro USB Power Port, 3 x EDID Audio(Pass/2CH/5.1CH) Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDMI resolution :4K x 2K, 24/50/60fs/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 225MHz
Max baud rate: 6.75Gbps
Max working current: 190mA
To improve our customers experience, we posted the following three methods if you experience no sound from output.
1. Switch EDID Button
Switch the EDID audio switch in the front. Change it between 2CH, 5CH or pass.
2. Turn Off Dolby Digital Plus
Because TOSLINK (SPDIF) does not support Dolby Digital Plus, you need to turn off Dolby Digital Plus function of the input devices. Then the sound can go through the extractor.
a: Amazon Fire TV or Amazon Fire TV Stick
Settings - Display Sound - Audio - Dolby Digital Output - Dolby Digital Plus off
b: Apple TV
Settings - Audio Video - Dolby Digital - on
c: Chromecast
Chromecast plays the contents from your video source, please make sure to turn off the Dolby Digital Plus on the video source through the play devices.
Package Contents:
1 X HDMI Audio Extractor
1 X 3.5mm to RCA Stereo Audio Cable
1 x Micro USB cable
1 X User Manual
Please read the introduction of Amazon products carefully before purchasing, and If you have any questions about the order, please first contact our customer service via Amazon Mail
