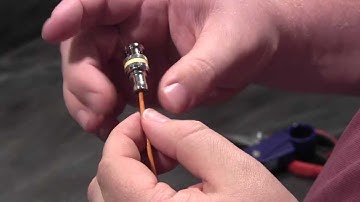

in this video i'll show the proper cable preparation and termination instructions for belden's 179 dt digital truck cable along with belden's 179 dtb hd 1 one piece compression bnc connector cable preparation for small cables such as belden's 179 dt is a critical step in the process of termination i'll use belden's cable pro one quarter by one quarter prep tool with a red cartridge installed for miniature cables install the cable fully into the tool insert it i like to seat the blades a little bit into the cable and then start my rotation three or four rotations and i also like to hold the tool in place while i remove the excess jacket it's very important critical in fact to remove and make sure that all braid is pulled away from the cable jacket from the dielectric foil as any leftover braid could potentially cause a short the electrical connection and thereby cause intermittent signal
