Description
Specification: MIL-DTL-26482
Sealing: Unsealed
Shielding: Yes
Connector Type: Circular
Connector Style: Plug
Mounting Type: Cable
Orientation: Straight
Endbell Type: Threaded - UNEF - Ext
Number of Contacts: 19
Contact Style: Pin
Termination Method: Solder
Insert Arrangement: 14-19
Contact Size: 19#20
Contacts Supplied: Yes
Contact Material: Copper Alloy
Contact Plating: Gold
Shell Material: Aluminum Alloy
Shell Plating: Olive Drab Chromate over Cadmium
Shell Color: Olive Drab
Insert Material: Neoprene
Grommet Seal Material: Neoprene
Amperage Rating: 13A
Operating Voltage DC: 850
Operating Voltage AC: 600
Operating Temperature: -67 to +257 (-55 to +125)
Contact Mating life: 500
RoHS: No
Insert Rotation Keying: Normal
Sealing: Unsealed
Shielding: Yes
Connector Type: Circular
Connector Style: Plug
Mounting Type: Cable
Orientation: Straight
Endbell Type: Threaded - UNEF - Ext
Number of Contacts: 19
Contact Style: Pin
Termination Method: Solder
Insert Arrangement: 14-19
Contact Size: 19#20
Contacts Supplied: Yes
Contact Material: Copper Alloy
Contact Plating: Gold
Shell Material: Aluminum Alloy
Shell Plating: Olive Drab Chromate over Cadmium
Shell Color: Olive Drab
Insert Material: Neoprene
Grommet Seal Material: Neoprene
Amperage Rating: 13A
Operating Voltage DC: 850
Operating Voltage AC: 600
Operating Temperature: -67 to +257 (-55 to +125)
Contact Mating life: 500
RoHS: No
Insert Rotation Keying: Normal

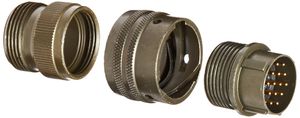

Amphenol Industrial PT06A-14-19P Circular Connector Pin, General Duty, Non-Environmental, Bayonet Coupling, Solder Termination, Straight Plug, 14-19 Insert Arrangement, 14 Shell Size, 19 Contacts
Current Price
$25.5
Average
$18.29
Min Price
$7.83
Max Price
$36.64
Price dynamics
28%
Description
Specification: MIL-DTL-26482
Sealing: Unsealed
Shielding: Yes
Connector Type: Circular
Connector Style: Plug
Mounting Type: Cable
Orientation: Straight
Endbell Type: Threaded - UNEF - Ext
Number of Contacts: 19
Contact Style: Pin
Termination Method: Solder
Insert Arrangement: 14-19
Contact Size: 19#20
Contacts Supplied: Yes
Contact Material: Copper Alloy
Contact Plating: Gold
Shell Material: Aluminum Alloy
Shell Plating: Olive Drab Chromate over Cadmium
Shell Color: Olive Drab
Insert Material: Neoprene
Grommet Seal Material: Neoprene
Amperage Rating: 13A
Operating Voltage DC: 850
Operating Voltage AC: 600
Operating Temperature: -67 to +257 (-55 to +125)
Contact Mating life: 500
RoHS: No
Insert Rotation Keying: Normal
Sealing: Unsealed
Shielding: Yes
Connector Type: Circular
Connector Style: Plug
Mounting Type: Cable
Orientation: Straight
Endbell Type: Threaded - UNEF - Ext
Number of Contacts: 19
Contact Style: Pin
Termination Method: Solder
Insert Arrangement: 14-19
Contact Size: 19#20
Contacts Supplied: Yes
Contact Material: Copper Alloy
Contact Plating: Gold
Shell Material: Aluminum Alloy
Shell Plating: Olive Drab Chromate over Cadmium
Shell Color: Olive Drab
Insert Material: Neoprene
Grommet Seal Material: Neoprene
Amperage Rating: 13A
Operating Voltage DC: 850
Operating Voltage AC: 600
Operating Temperature: -67 to +257 (-55 to +125)
Contact Mating life: 500
RoHS: No
Insert Rotation Keying: Normal
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
