The Ample Scientific TCA-5.0C microscope camera pack has a digital, 5.0 megapixel (MP), complementary metal-oxide semiconductor (CMOS) camera for microscopes, non-compressed image capturing and recording ability, a standard C/CS-mount interface, 2.2 x 2.2 micron pixels for high resolution output, and comes with image-processing TSView software. This digital camera for microscopes enhances object or image resolution, and can display an image on a monitor. It is commonly used for education, medical and scientific research, and for industry documentation.

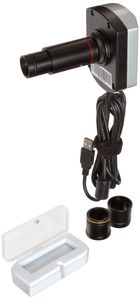

This microscope camera features a high-resolution 5.0 MP CMOS color image sensor to manage noise reduction and image quality. It is used with trinocular ports and eyepieces, and connects to a camera with a 1.8-meter USB 2.0 cable. It has a one 2.5” micron sensor shows 2.2 x 2.2 micron pixels, and provides maximum resolution frame rate output of 8 frames per second (FPS) for 2592 x 1944 (horizontal by vertical measurement), and 30 FPS for 640 x 480. The camera supports both automatic and manual adjustment capabilities. It has a TCN 0.5 reduce lens with 23, 30, and 30.6 mm direct insert interface adaptors. The camera has a red, green, and blue (RGB) Bayer filter for color image acquisition. It has an 8-bit RGB pixel mode for depth and image display. Program controls include image size, gain, brightness, exposure time, and color. It has program image processing capabilities of crop, contrast, mirror, invert, rotate, flip, length, area, and angle. In addition to the TCN 0.5 reduce lens, the camera comes with a 0.01 mm micrometer, and a driver installation CD. TSView software is compatible with Microsoft Windows 2000, Windows XP, Windows Vista, and Windows 7.
Specifications
| Camera | Digital, 5.0 MP CMOS | ||||
| Interface | C/CS-mount | ||||
SoftwareAmple Scientific TCA-5.0C PACK 5.0 MP Digital Microscope CMOS Camera with Image Capturing and Processing Software, 2.2 x 2.2 Micron PixelsPrice is below average Current Price $48.39 Average $176.83 Min Price $45.31 Max Price $304.81 Price dynamics 73% Description The Ample Scientific TCA-5.0C microscope camera pack has a digital, 5.0 megapixel (MP), complementary metal-oxide semiconductor (CMOS) camera for microscopes, non-compressed image capturing and recording ability, a standard C/CS-mount interface, 2.2 x 2.2 micron pixels for high resolution output, and comes with image-processing TSView software. This digital camera for microscopes enhances object or image resolution, and can display an image on a monitor. It is commonly used for education, medical and scientific research, and for industry documentation. This microscope camera features a high-resolution 5.0 MP CMOS color image sensor to manage noise reduction and image quality. It is used with trinocular ports and eyepieces, and connects to a camera with a 1.8-meter USB 2.0 cable. It has a one 2.5” micron sensor shows 2.2 x 2.2 micron pixels, and provides maximum resolution frame rate output of 8 frames per second (FPS) for 2592 x 1944 (horizontal by vertical measurement), and 30 FPS for 640 x 480. The camera supports both automatic and manual adjustment capabilities. It has a TCN 0.5 reduce lens with 23, 30, and 30.6 mm direct insert interface adaptors. The camera has a red, green, and blue (RGB) Bayer filter for color image acquisition. It has an 8-bit RGB pixel mode for depth and image display. Program controls include image size, gain, brightness, exposure time, and color. It has program image processing capabilities of crop, contrast, mirror, invert, rotate, flip, length, area, and angle. In addition to the TCN 0.5 reduce lens, the camera comes with a 0.01 mm micrometer, and a driver installation CD. TSView software is compatible with Microsoft Windows 2000, Windows XP, Windows Vista, and Windows 7. Specifications
|
