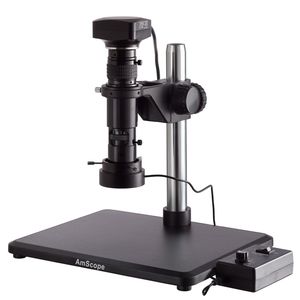

The H1000 is a wide-range monoscopic zoom microscope, commonly used for industrial inspection. The 0.83X to 10X zoom objective provides a large range of magnifications, with a 1X C-mount interface for C-mount cameras. The interface includes a diopter for fine-focus adjustment, useful for parfocaling the objective's zoom range with the imaging device. The C-mount has a removable aperture to accommodate image sensors up to the 1" format. Both the zoom and diopter are lockable for measurement applications. With the use of an optional AD-C23 adapter, an eyepiece can be used.

The included stand has an 11" round pillar and a large-footprint base. The focusing rack is compatible with 1.25" diameter pillars, aloowing the microscope to be used on other stands, including our single-arm and double-arm boom-stands.

Specifications:
-Lens Type: Zoom C-mount
-Lens Magnification Range: 0.83X to 10X
-Lens Mount: C-mount (1" / 25.4mm)
-Working Distance: 3 1/2" (90mm)
-Pillar Height: 11" (280mm)
-Pillar Diameter: 1.25" (32mm)
-Stand Footprint: 12 5/8" x 10 1/4"
