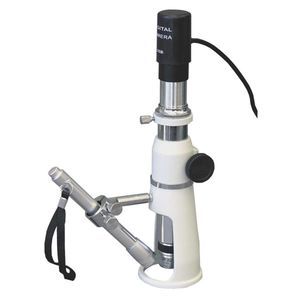

The AmScope H100-E1 digital handheld stand microscope has 100x magnification, and reticle with a 100-unit measuring range and 0.01 unit reticle for measuring the thickness, height, or depth of specimens. The 1.3MP camera has a CMOS color sensor, image capture and editing software, and USB 2.0 output to capture or display still or video images on a computer or projector. The microscope has a 10x widefield eyepiece and a 10x achromatic objective. It has a 17mm field of view and a 30mm working distance. Achromatic lens coatings provide color correction to ensure full contrast. An adjustable penlight attached to the base can be adjusted to provide hands-free illumination (requires two AAA batteries, sold separately). Metal construction provides durability for field and classroom applications. The microscope is 8-1/4 x 2-1/2 inches (H x W, where H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right.) A digital handheld stand microscope, sometimes called a shop microscope, is used in field, lab, and quality control applications, and in home and educational settings, and where image capture, detailed records, or documentation is required.

The 1.3MP digital camera has a CMOS color sensor for displaying still microscopy images and streaming live videos to a computer or projector, and 40x magnification. The camera can be mounted in any 23mm eye tube. The camera includes image capture and editing software that provides still image and live video capture and editing capability, including measurement functions. The software supports JPG, TIF, GIF, PSD, WMF, and BMP file formats and is compatible with Windows XP, Vista, 7, and 8; Mac OS X; and Linux. Camera drivers are compatible with Windows XP, Vista, 7, and 8; Mac OS X; and Linux. The software includes Windows APIs for native C/C++, C#, DirectShow, Twain, and LabVIEW that enable custom application development. The camera has a USB
