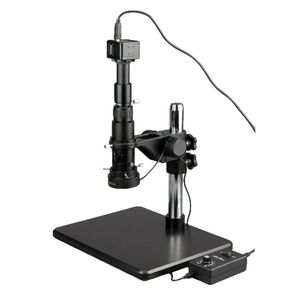

The AmScope H800-5M digital monocular inspection microscope has a 0.4x C-mount camera adapter, a 0.7x-5.0x zoom objective, and an 11x-80x zoom range. The 5MP camera has a CMOS color sensor, a reduction lens, image capture and editing software, and USB 2.0 output to capture or display still or video images on a computer or projector. The microscope has a 12.9 x 17.1mm maximum field of view and a 1.8 x 2.4mm minimum field of view. The working distance is 4-1/8" (105mm). Ambient lighting illuminates the specimen, eliminating the need for power or batteries. The microscope stand has an 11" pillar and a 13 x 10" table (W x D, where W is width, the horizontal distance from left to right; D is depth, the vertical distance from front to back). A digital handheld stand microscope, sometimes called a shop microscope, is used in field, lab, and quality control applications, and in home and educational settings, and where image capture, detailed records, or documentation is required.
The 5MP digital camera has a CMOS color sensor for displaying still microscopy images and streaming live videos to a computer or projector. The camera has 40x magnification and a 0.5x reduction lens that ensures that the display has a similar field of view as the microscope eyepiece. The camera can be mounted in a C-Mount or any 23mm eye tube. The camera includes image capture and editing software that provides still image and live video capture and editing capability, including measurement functions. The software supports JPG, TIF, GIF, PSD, WMF, and BMP file formats and is compatible with Windows XP, Vista, 7, and 8; Mac OS X; and Linux. Camera drivers are compatible with Windows XP, Vista, 7, and 8; Mac OS X; and Linux. The software includes Windows APIs for native C/C++, C#, DirectShow, Twain, and LabVIEW that enable custom application development. The camera has a USB 2.0 data port (cable included).
