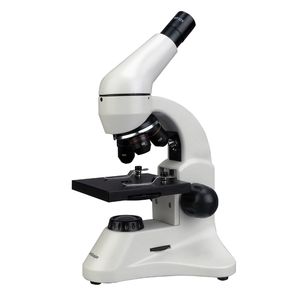

The AmScope M120B-2L-PB10 monocular compound microscope has 10x widefield and 20x widefield eyepieces, a reverse-mounted nosepiece with three DIN achromatic objectives, Brightfield upper and lower LED illumination, a 0.65 NA single-lens condenser, and a plain stage. The reverse-mounted revolving nosepiece has 4x, 10x, and 40x DIN achromatic objectives that provide color correction of magnified images. The monocular viewing head holds the WF10x or WF20x eyepiece on a fixed 45-degree vertical inclination to reduce eye and neck strain and has 360-degree rotation capability to provide a more comprehensive view and enable sharing. A compound microscope is used for inspection and dissection of specimens when two-dimensional images are desired.
The microscope has upper (episcopic) LED illumination that reflects light off the specimen for enhanced visibility of opaque specimens, and lower (diascopic) LED illumination that transmits light up through the specimen for enhanced visibility of translucent and transparent objects. Brightfield (BF) illumination allows the specimen to absorb light, resulting in a dark image on a light background. LED illumination provides bright, cool light for working with temperature-sensitive or live specimens. The 0.65 NA single-lens condenser and disc diaphragm control the amount of light illuminating the specimen. The plain stage has an opening for light transmission and stage clips to secure the slide or specimen in place while viewing. A stage stop prevents the stage or specimen from coming into contact with the objectives. The solid-metal frame has a stain-resistant enamel finish for durability. The microscope comes with five blank slides and five prepared slides.
| Specifications | |
|---|---|
| Head | Compound monocular |
| Eyepieces | WF10x, WF20x |
| Specifications | |
|---|---|
| Head | Compound monocular |
| Eyepieces | WF10x, WF20x |
