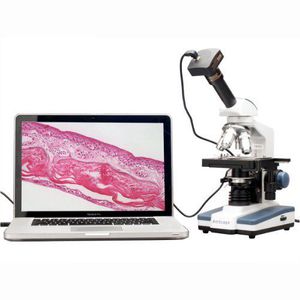

The AmScope M620B-M3 digital monocular compound microscope has interchangeable 10x and 20x widefield eyepieces, a forward-facing nosepiece with four DIN achromatic objectives, LED illumination, coaxial nested coarse and fine focus, a 1.25 NA Abbe condenser, and a double-layer mechanical stage. The 3MP camera has a CMOS color sensor, a reduction lens, image capture and editing software, and USB 2.0 output to capture or display still or video images on a computer or projector. The monocular viewing head has a fixed 30-degree vertical inclination to reduce eye and neck strain, and 360-degree rotation capability to enable sharing. An anti-mold head preserves optics in high-humidity areas. The forward-facing revolving nosepiece has 4x, 10x, 40xS (spring), and 100xS (spring, oil) DIN achromatic objectives that provide color correction of magnified images. The 40xS and 100xS objectives are spring loaded to prevent damage to the slide or objective when focusing. The 100xS oil objective provides increased resolution over a standard objective. The fully-coated optical system provides sharp, high-resolution images. A digital compound microscope is used for inspection and dissection of specimens when two-dimensional images are desired, and where image capture, detailed records, or documentation is required.

The 3MP digital camera has a CMOS color sensor for displaying still microscopy images and streaming live videos to a computer or projector. The camera has 40x magnification and a 0.5x reduction lens that ensures that the display has a similar field of view as the microscope eyepiece. The camera can be mounted in a C-Mount or any 23mm eye tube. The camera includes image capture and editing software that provides still image and live video capture and editing capability, including measurement functions. The software supports JPG, TIF, GIF, PSD, WMF, and BMP file formats and is compatible with Windows XP, Vista, 7, and 8; Mac OS X; and Linux. Camera
