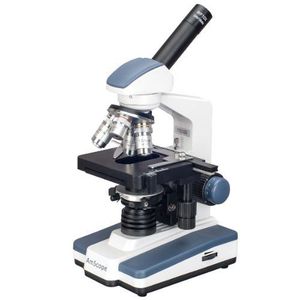

The AmScope M620B monocular compound microscope has interchangeable 10x widefield and 20x widefield eyepieces, a forward-facing nosepiece with four DIN achromatic objectives, LED illumination, coaxial nested coarse and fine focus, a 1.25 NA Abbe condenser, and a double-layer mechanical stage. The monocular viewing head has a fixed 30-degree vertical inclination to reduce eye and neck strain, and 360-degree rotation capability to enable sharing. An anti-mold head preserves optics in high-humidity areas. The forward-facing revolving nosepiece has 4x, 10x, 40xS (spring), and 100xS (spring, oil) DIN achromatic objectives that provide color correction of magnified images. The 40xS and 100x S objectives are spring loaded to prevent damage to the slide or objective when focusing. The 100xS oil objective provides increased resolution over a standard objective. The fully-coated optical system provides sharp, high-resolution images. A compound microscope is used for inspection and dissection of specimens when two-dimensional images are desired.

The microscope has lower (diascopic) Brightfield illumination that transmits light up through the specimen for enhanced visibility of translucent and transparent objects. Brightfield (BF) illumination allows the specimen to absorb light, resulting in a dark image on a light background. LED illumination provides bright, cool light for working with temperature-sensitive or live specimens. The 1.25 NA Abbe condenser can be adjusted to control the distance of the light from the stage and has an iris diaphragm to optimize the amount of light illuminating the specimen. The condenser is controlled using a spiral mechanism. The mechanical stage has 1mm stage divisions, locks the slide into place, and provides precise slide manipulation along the X- and Y-axis to allow coordinates to be recorded, enabling the viewer to return to a specific location on the slide. It has a traveling range of 2-13/16 x 1-3/16 inches, a
