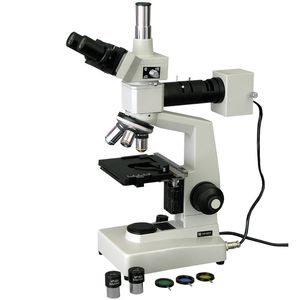

The AmScope ME300TB metallurgical trinocular microscope has interchangeable pairs of 10x widefield and 20x widefield eyepieces, a forward-facing nosepiece with three DIN achromatic objectives, Brightfield episcopic halogen illumination, and a double-layer mechanical stage with a stage stop to protect slides and objectives from damage. The trinocular viewing head has a 23mm vertical camera mount, a sliding binocular head to adjust interpupillary distance, a fixed 30-degree vertical inclination to reduce eye and neck strain, and a 360-degree rotation capability to enable sharing. The sliding head has a range of 55 to 75mm to accommodate individual eye differences, and bilateral dioptric adjustment to accommodate individual eye-strength differences. The forward-facing triple nosepiece has 4x, 10x, and 40xS (spring) DIN plan optical-glass objectives that combine with the eyepieces to provide color correction of magnified images. The 40xS objective is spring loaded to prevent slide damage when focusing. Plan objectives provide improved focus over the entire range of the viewing field. A metallurgical microscope uses transmitted and reflected light to view opaque or metallic specimens, or larger specimens that cannot be viewed on a standard microscope stage.

The microscope has reflected episcopic (upper) illumination that reflects light off the specimen for enhanced visibility of opaque specimens. The episcopic illumination system has independent filter holders for yellow, blue, green, and frosted filters (included). The iris diaphragm has separate aperture and alignment controls to provide precision lighting control. The 20W halogen light source provides bright light in a concentrated path and has a rheostat to control light intensity. The double-layer mechanical stage, with 1mm stage divisions and 0.1mm vernier graduations, locks the slide into place and provides precise slide manipulation along the X- and Y-axis to allow coordinates to be r
