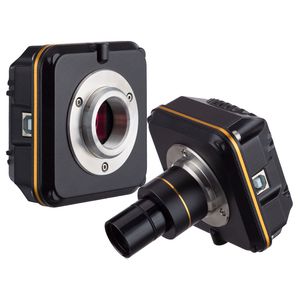

The MU900B is an upgraded version of our MU series cameras. With an increased data-buffer, image-processing has been improved resulting in higher framerates. With the universal USB 2.0 interface, this bus-powered 9MP camera is a go-anywhere imaging solution. Deriving power from the USB connection, MU series cameras can be used at home, in a lab, or in the field. The industry-standard C-mount design allows this camera to be connected directly to C-mount photo-ports, or used in conjunction with an array of lenses and adapters to mount to virtually any popular microscope line.
With software available for Windows, Mac, and Linux, the MU series is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
Camera Specifications:
- Sensor: Aptina (color)
- Sensor Type: CMOS
- Sensor Size: 5.83x4.37mm (1/2.4" class)
- Pixel Size: 1.67 micrometers
- Resolution: 9MP
- Frame Rate: 47fps @ 872x654, 15fps @ 1744x1308, 3.9fps@3488x2616
- Sensitivity: .31V/Lux-sec
- Connectivity: USB 2.0
- Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
- Mounting Sizes: 23mm, 30mm, 30.5mm, and C-mount
