The AmScope SW-3B13Z-FRL binocular stereo microscope head has a 1x/3x objective, a pair of 10x20mm widefield high-eyepoint eyepieces, a 2.0x Barlow lens, and a single-arm boom stand. The microscope head has a 3" O-ring style mounting ring. The binocular viewing head has an interpupillary range of 47 to 75mm, a 45-degree inclination to reduce eye and neck strain, and 360-degree rotation to enable sharing. The WF10x20mm super-widefield high-eyepoint eyepieces combine with the 1x/3x objective to provide 10x, 20x, 30x, 60xmagnification, and a longer working distance for inspecting large-scale specimens that require handling or repair. The microscope includes a 2.0x Barlow lens that can be added to the objective to increase the magnification range. A Barlow lens with a magnification greater than 1.0 increases the magnification and reduces the working distance. High-eyepoint eyepieces ease viewing for users who wear glasses, dioptric adjustment accommodates individual eye-strength differences, and eye guards ensure comfortable viewing. The optical glass lenses provide sharp images, and are fully-coated to ensure high-resolution images. A stereo microscope, sometimes called an inspection or dissection microscope, has low magnification and a long working distance that enables users to manipulate the object being inspected.
The removable 8W fluorescent ring light provides cool, white light for observing specimens as they would appear in their natural environment. A ring light provides shadow-free illumination. It has a 2-3/8" inner diameter and uses a 110V power supply. The microscope has a 17" pillar that has an 8" vertical working distance. The 16" single-arm boom has a 24" overall length. Bilateral focus eases use for left- and right-handed users. The microscope head can be rotated on the X- and Y-axis. The solid cast-steel base is 1-3/4 x 9 x 9 inches (H x W x D, where H is height, the vertical distance from the lowest to highest point; W is

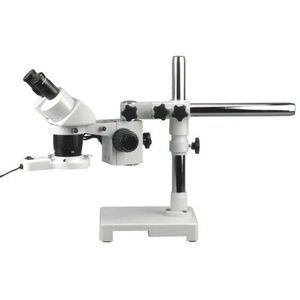

AmScope SW-3B13Z-FRL Binocular Stereo Microscope, WH10x Eyepieces, 10X/20X/30X/60X Magnification, 1X/3X Objective, Single-Arm Boom Stand, 8W Fluorescent Ring Light, 110V-120V, Includes 2.0x Barlow Lens
The AmScope SW-3B13Z-FRL binocular stereo microscope head has a 1x/3x objective, a pair of 10x20mm widefield high-eyepoint eyepieces, a 2.0x Barlow lens, and a single-arm boom stand. The microscope head has a 3" O-ring style mounting ring. The binocular viewing head has an interpupillary range of 47 to 75mm, a 45-degree inclination to reduce eye and neck strain, and 360-degree rotation to enable sharing. The WF10x20mm super-widefield high-eyepoint eyepieces combine with the 1x/3x objective to provide 10x, 20x, 30x, 60xmagnification, and a longer working distance for inspecting large-scale specimens that require handling or repair. The microscope includes a 2.0x Barlow lens that can be added to the objective to increase the magnification range. A Barlow lens with a magnification greater than 1.0 increases the magnification and reduces the working distance. High-eyepoint eyepieces ease viewing for users who wear glasses, dioptric adjustment accommodates individual eye-strength differences, and eye guards ensure comfortable viewing. The optical glass lenses provide sharp images, and are fully-coated to ensure high-resolution images. A stereo microscope, sometimes called an inspection or dissection microscope, has low magnification and a long working distance that enables users to manipulate the object being inspected.
The removable 8W fluorescent ring light provides cool, white light for observing specimens as they would appear in their natural environment. A ring light provides shadow-free illumination. It has a 2-3/8" inner diameter and uses a 110V power supply. The microscope has a 17" pillar that has an 8" vertical working distance. The 16" single-arm boom has a 24" overall length. Bilateral focus eases use for left- and right-handed users. The microscope head can be rotated on the X- and Y-axis. The solid cast-steel base is 1-3/4 x 9 x 9 inches (H x W x D, where H is height, the vertical distance from the lowest to highest point; W is
