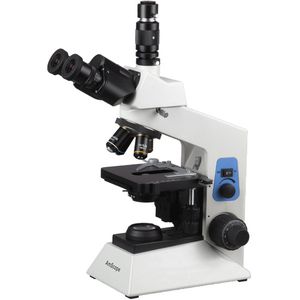

The AmScope T580A compound trinocular microscope has a Siedentopf binocular mount with interchangeable pairs of 10x widefield and 16x widefield eyepieces, a forward-facing nosepiece with four DIN achromatic high-contrast objectives, Brightfield halogen illumination, a double-layer mechanical stage with a stage stop to protect slides and objectives from damage, and anti-mold surfaces to preserve optics in high-humidity areas. The trinocular head has a vertical camera mount and a Siedentopf binocular mount with interchangeable pairs of WF10x and WF16x eyepieces with 55 to 75mm Siedentopf interpupillary adjustment, a fixed 30-degree vertical inclination to reduce eye and neck strain, and a 360-degree rotation capability to provide a more comprehensive view and enable sharing. Dioptric adjustment accommodates individual eye-strength differences. The vertical trinocular port accepts a camera with a 23mm or C-Mount adapter (camera sold separately). The forward-facing revolving nosepiece has 4x, 10x, and 40xS, and 100xS (oil) DIN achromatic high-contrast objectives that provide color correction of magnified images. High-contrast objectives provide sharp color distinction. The 40xS objective is spring loaded to prevent slide damage when focusing. The 100xS spring-loaded oil-immersion objective uses oil between the specimen and the objective lens to provide increased resolution over a standard objective. A compound microscope is used for inspection and dissection of specimens when two-dimensional images are desired.

The microscope has lower (transmitted, diascopic) Brightfield illumination that transmits light up through the specimen for enhanced visibility of translucent and transparent objects. Brightfield (BF) illumination allows the specimen to absorb light, resulting in a dark image on a light background. Halogen illumination provides bright light in a concentrated path. The 1.25 NA Abbe condenser is mounted on a rack-and-pinion control syste
