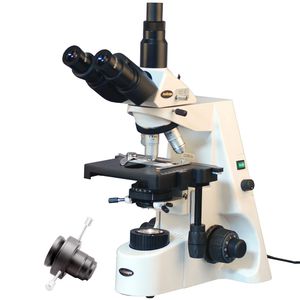

The AmScope T690A-DK-PL compound trinocular microscope has a Siedentopf binocular mount with interchangeable pairs of 10x super-widefield and 15x super-widefield eyepieces, a reverse-mounted nosepiece with four DIN infinity plan achromatic objectives, Brightfield/Darkfield (BF/DF) halogen illumination, and a double-layer mechanical stage with a stage stop to protect slides and objectives from damage. The trinocular head has a vertical camera mount and a Siedentopf binocular mount with interchangeable pairs of WH10x and WH15x eyepieces, 55 to 75mm Siedentopf interpupillary adjustment, a fixed 30-degree vertical inclination to reduce eye and neck strain, and a 360-degree rotation capability to provide a more comprehensive view and enable sharing. Dioptric adjustment accommodates individual eye-strength differences. The vertical trinocular port accepts a camera with a 23mm or C-Mount adapter (camera sold separately). The mechanical tube length is 6-5/16" (160mm). The reverse-mounted revolving nosepiece has 4x, 10x, 40xS, and 100xS (oil) DIN infinity plan achromatic objectives that provide color correction, focus over the entire range of the viewing field, and a longer working distance for improved focus when auxiliary components are utilized. The 40xS objective is spring loaded to prevent slide damage when focusing. The 100xS spring-loaded oil-immersion objective uses oil between the specimen and the objective lens to provide increased resolution over a standard objective. A compound microscope is used for inspection and dissection of specimens when two-dimensional images are desired.

The microscope has Brightfield/Darkfield (BF/DF) illumination. Brightfield (BF) illumination allows the specimen to absorb light, resulting in a dark image on a light background, and Darkfield (DF) illumination reflects light off the specimen, resulting in a light image on a dark background. Halogen light source provides bright light in a concentrated path, and
