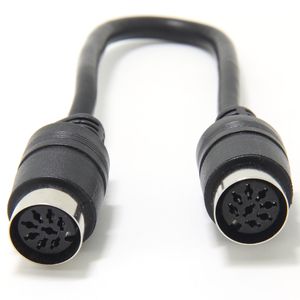

Ancable 8-PIN DIN Female to Female MIDI Extender Coupler Joiner for DIN 3 5 7 8 Midi Cable and Bang & Olufsen B&O BEOLAB Powerlink MK2 MK3

welcome to show me cables today we'll be taking a look at the commonly used but often confusing didn't connectors this is the 8 pin mini dim panel mount connector to install you will need the following items low voltage cable wire strippers solder and soldering iron and the din connector measure how far you will need to strip back the jacket by holding the cable up against the base of the connector then strip the cable jacket using the wire strippers for this example we will be using cat 5e cable you will also need to strip the individual conductors now comes the hard part soldering if you are new to soldering it is recommended to find someone who's more experienced for the best results there are eight solder points on the connector corresponding to the pins at the front of the connector be aware there is not a standard wiring for dead connectors and the wiring can widely vary between d
