Parameters:

Operating System: Android 6.0

CPU: Intel & RK, SOFIA-3GR, basic frequency: 4Quad-core intel ATOM 1.2G
GPU: 4Quad-Core Mali450MP4, 600MHz
RAM: DDR3 1GB
Radio: ST7786
ROM: EMMC 16GB
product size: about 215*130*50mm/8.46 * 5.12 * 1.97in
Installation size: about 130*85mm/5.12 * 3.35in
G.W.: about 1222g
N.W.: about 760g
Phone Internet: Android system: USB connection, IOS system: WIFI connection
Resolution: 1024 * 600
Port: TTL, LVDS,
Color depth: 16 bit, 24 bit
Touch screen: capacitive screen
GPS: GPS (USA) & GLONASS (Russia)
WIFI: Supported protocols 802.11 b / g / n
Bluetooth: 4.0, HFP / HSP, A2DP, AVRCP, phone book downloading
Video playback: 1080P @ 60FPS (H.264 H.265)
USB: USB 2.0
SD port: SD 3.0
Extended serial interface: 1 way, support baud rate 115200
MIC input: 1-way analog input
Video Input: Support 3 way CVBS / S-Video / YUV
Audio input: 4-way stereo inputs
Audio output: 4-channel output
Sound processing: Rohm BD37534, 3-band EQ
Driving recorder: Support USB driving recorder function
Operating voltage range: 9V ~ 16V
Sleep current: ≤ 9MA
Deep standby current: ≤ 3MA
Note:
1. The product manual has been set into the product. Temporarily no paper product manual is included.
2. The product is commonly used in most of VW cars, the installed size for car models is 205 * 105 * 48mm.
Packing List:

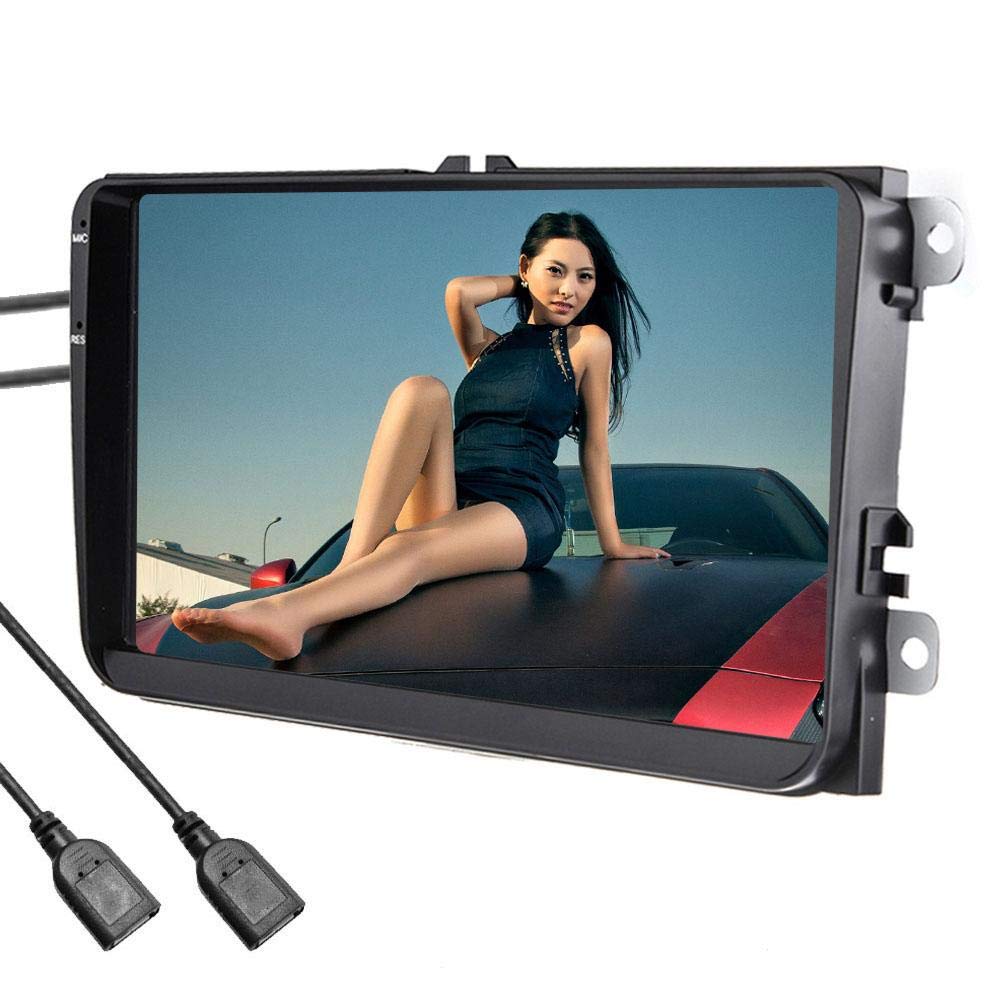

1 * For VW Android Player
2 * For VW Power Cable（Suitable for different specifications）
1 * Camera Input cable
1 * RCA Input / Output cable
1 * GPS Antenna
2 * USB Cable
1* For VW canbus box
1* For VW FM Antenna adapter cable
1 * 8 LED Rearview Camera (optional)
