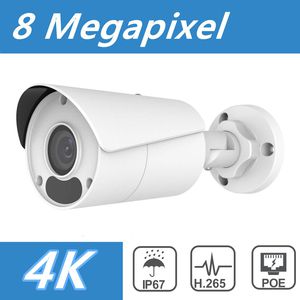

Camera Sensor：1/2.5", 8.0 megapixel, progressive scan, CMOS
Lens: 4.0mm@ F1.6
Adjustment Range：Pan: 0°~360° ，Tilt: 0° ~ 90°，Rotation: 0° ~ 360°
Shutter：Auto/Manual, 1/6~1/100000 s
Minimum Illumination：Colour: 0.001 Lux (F1.6, AGC ON)
Day/Night：IR-cut filter with auto switch (ICR)
Digital noise reduction：2D/3D DNR
S/N：>52dB
IR Range：Up to 30m (98 ft) IR range
Defog：Digital Defog
WDR：120dB
Video
Video Compression: Ultra 265,H.265, H.264, MJPEG
H.264 code profile: Baseline profile, Main Profile, High Profile
Frame Rate：Main Stream:8MP (3840*2160): Max. 15 fps;Sub Stream:1080P (1920*1080): Max. 30 fps;Third Stream:D1(720*576) : Max. 30 fps
9:16 Corridor Mode:Supported
HLC:Supported
BLC: Supported
OSD:Up to 8 OSDs
Privacy Mask:Up to 8 areas
ROI:Up to 8 areas
Motion Detection:Up to 4 areas
Smart
Behavior Detection:Intrusion, cross line, motion detection
Intrusion:Enter and loiter in a pre-defined virtual region
cross line:Cross a pre-defined virtual line
motion detection:Moving within a pre-defined virtual region
Recognition:Face detection
Intelligent Identification:Defocus, Scene Change
Statistical Analysis:People counting
Network
Protocols:IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL
Compatible Integration:ONVIF(Profile S), API
Interface
Network:1 RJ45 10M/100M Base-TX Ethernet
General
Power: 12 V DC±25%, PoE (IEEE802.3 af),Power consumption: Max 6.4 W
Working Environment:-30℃ ~ 60℃ (-22°F ~ 140°F),Humidity :10%~90% RH(non-condensing)
