Description
Specification:
LCD Screen:
LCD size: 9.0 inches (diagonal)
Resolution: 1024 * 3 (RGB) * 600
Display mode: usually white, transmissive
Surface treatment: anti-glare
Viewing angle: L70°R70°U50°D60
Panel type: TFT
Display color: 262K
Contrast: 500:1
Brightness: 220cd / m2
Number of connections: 50 PIN digital (TTL) TCON
LED: backlight
Response time: 20ms
Working temperature: -20 ° C ~ 80 ° C
Driver Board:
Working voltage: DC 12V
Resolution: 7~22 inches, up to 1920 * 1080
Input: dual / single LVDS interface
Working current: 200~250mA
Input signal: HDMI VGA AV
Audio: Support
Remote: optional
OSD: Support
Material: ABS+ electronic component
Small module size: approx. 75 * 15mm / 3.0 * 0.6in
Large module size: approx. 90 * 70mm / 3.5 * 2.8in
LCD screen size: approx. 210 * 125mm / 8.3 * 4.9in
Weight: approx. 362g
Package list:
1 * Flat Cable
1 * Screen
2 * Driver Board
LCD Screen:
LCD size: 9.0 inches (diagonal)
Resolution: 1024 * 3 (RGB) * 600
Display mode: usually white, transmissive
Surface treatment: anti-glare
Viewing angle: L70°R70°U50°D60
Panel type: TFT
Display color: 262K
Contrast: 500:1
Brightness: 220cd / m2
Number of connections: 50 PIN digital (TTL) TCON
LED: backlight
Response time: 20ms
Working temperature: -20 ° C ~ 80 ° C
Driver Board:
Working voltage: DC 12V
Resolution: 7~22 inches, up to 1920 * 1080
Input: dual / single LVDS interface
Working current: 200~250mA
Input signal: HDMI VGA AV
Audio: Support
Remote: optional
OSD: Support
Material: ABS+ electronic component
Small module size: approx. 75 * 15mm / 3.0 * 0.6in
Large module size: approx. 90 * 70mm / 3.5 * 2.8in
LCD screen size: approx. 210 * 125mm / 8.3 * 4.9in
Weight: approx. 362g
Package list:
1 * Flat Cable
1 * Screen
2 * Driver Board

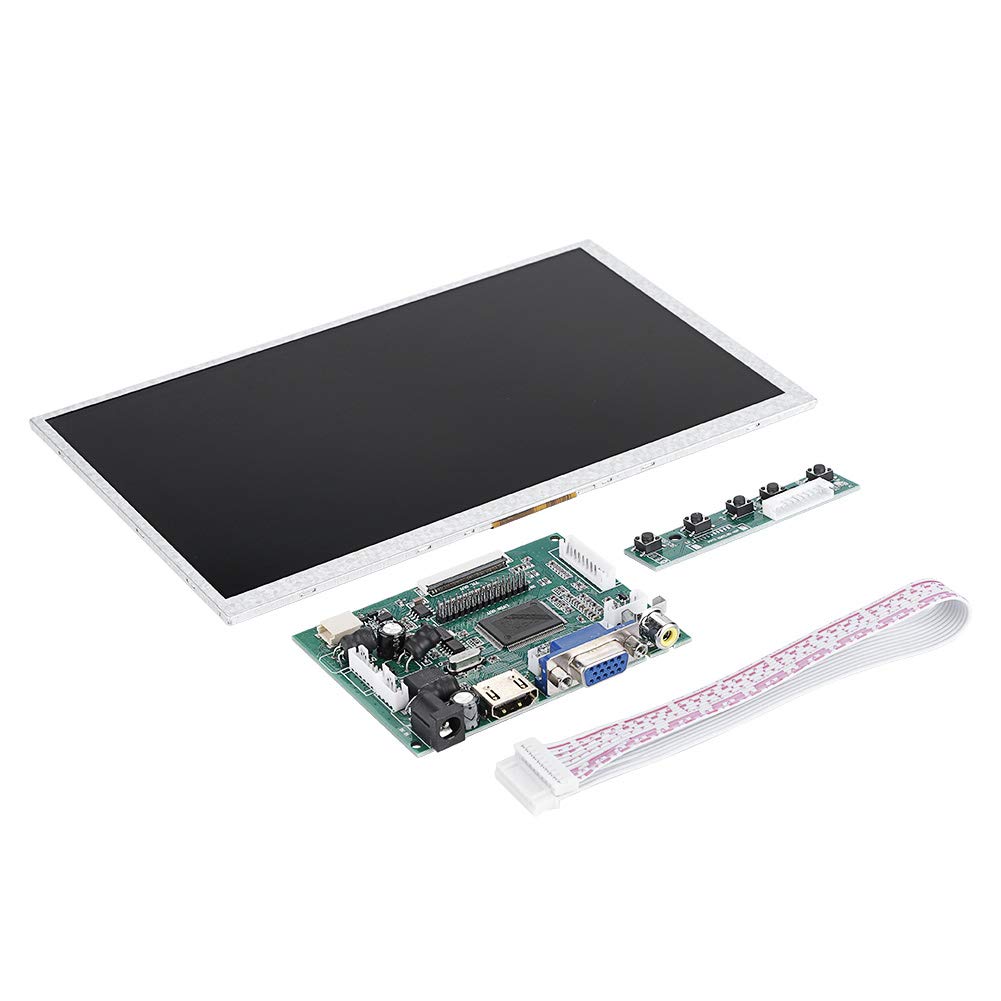

ASHATA Raspberry Pi Display,9 Inch LCD Display Module HDMI + VGA + 2AV Driver Board for Raspberry Pi
Current Price
$68.49
Average
$64.79
Min Price
$62.07
Max Price
$68.49
Price dynamics
5%
Description
Specification:
LCD Screen:
LCD size: 9.0 inches (diagonal)
Resolution: 1024 * 3 (RGB) * 600
Display mode: usually white, transmissive
Surface treatment: anti-glare
Viewing angle: L70°R70°U50°D60
Panel type: TFT
Display color: 262K
Contrast: 500:1
Brightness: 220cd / m2
Number of connections: 50 PIN digital (TTL) TCON
LED: backlight
Response time: 20ms
Working temperature: -20 ° C ~ 80 ° C
Driver Board:
Working voltage: DC 12V
Resolution: 7~22 inches, up to 1920 * 1080
Input: dual / single LVDS interface
Working current: 200~250mA
Input signal: HDMI VGA AV
Audio: Support
Remote: optional
OSD: Support
Material: ABS+ electronic component
Small module size: approx. 75 * 15mm / 3.0 * 0.6in
Large module size: approx. 90 * 70mm / 3.5 * 2.8in
LCD screen size: approx. 210 * 125mm / 8.3 * 4.9in
Weight: approx. 362g
Package list:
1 * Flat Cable
1 * Screen
2 * Driver Board
LCD Screen:
LCD size: 9.0 inches (diagonal)
Resolution: 1024 * 3 (RGB) * 600
Display mode: usually white, transmissive
Surface treatment: anti-glare
Viewing angle: L70°R70°U50°D60
Panel type: TFT
Display color: 262K
Contrast: 500:1
Brightness: 220cd / m2
Number of connections: 50 PIN digital (TTL) TCON
LED: backlight
Response time: 20ms
Working temperature: -20 ° C ~ 80 ° C
Driver Board:
Working voltage: DC 12V
Resolution: 7~22 inches, up to 1920 * 1080
Input: dual / single LVDS interface
Working current: 200~250mA
Input signal: HDMI VGA AV
Audio: Support
Remote: optional
OSD: Support
Material: ABS+ electronic component
Small module size: approx. 75 * 15mm / 3.0 * 0.6in
Large module size: approx. 90 * 70mm / 3.5 * 2.8in
LCD screen size: approx. 210 * 125mm / 8.3 * 4.9in
Weight: approx. 362g
Package list:
1 * Flat Cable
1 * Screen
2 * Driver Board
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
