This product could fit for all below models as expected:
Volkswagen Tiguan 2009 2010
Volkswagen Gran Lavida 2013 2015
AUDI A4 B8 VW Sharan 2010 2012 2013 2015
Volkswagen LAVIDA 2012 2013 2015
Volkswagen New Passat 2011 2013 2015
Volkswagen Jetta/Sagitar 2012 2013 2015
Volkswagen Touareg 2011 2012 2013 2015 2016
AUDI RS6 2009 2010
AUDI A6L A3 hatchback 2012 2013 2014
AUDI A4L A5 S5 Q3 Q5 A8L 2012 2013 2014 2015
Technique Parameter:
1. TV system: NTSC (if you need PAL, please leave a message)
2. Resolution: 480/520 TV lines
3. Lens angle:170°
4. S/N ratio: more than 48db(AGC-OFF)
5. Video Color: Colorful
6. Video Output: 1.0Vp-p,75Ω
7. Image Device: 1/4 inch color
8. Sensing area: 5.78 x 4.19mm
9. Sync. system: internal
10.Power supply: DC 12V
11,White Balance: Auto
12.Waterproof Class: ip 66
13.Effective pixels: 628 x 586 Pixels
14.Electronic Shutter: 1/60-1/10000 seconds
15.Current Consumption: ≤150mA
16.Current consumption: 90mA Max
17.Storage temperature:-40°C to +60°C, RH95% Max
18.Minimum illumination:0.3Lux/F1.2
19.Operating Temperature:-30°C to +50°C, RH95%
Package Content:

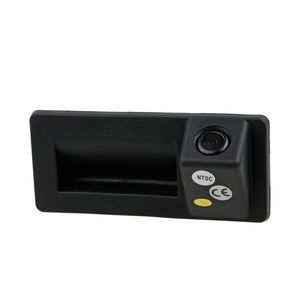

1 x Car CCD Camera
1 x 6M video cable
1 x 1M power cable
1 x User Manual
