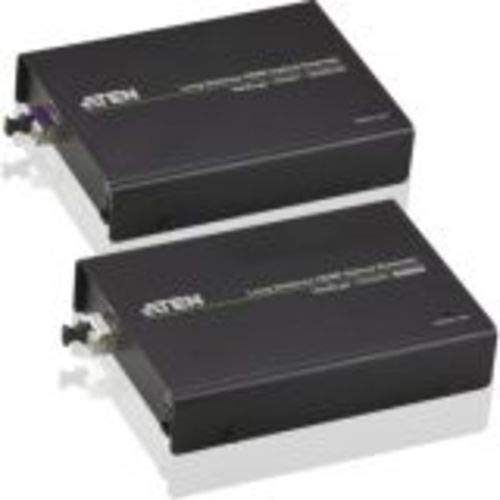

Aten HDMI Optical Extender (VE892)

[Music] a10 video over ip extenders are designed to address the challenges faced by systems integrators they offer multi-functionality in extender splitter matrix switch video wall and daisy chain applications setup is easy step 1 use the push buttons to set up id numbers for each transmitter and receiver step 2 connect the transmitters to the source devices and the receivers to the displays step 3 connect your transmitters and receivers to the network switch step 4 set up your network switch enabling igmp version 2 and jumbo frame is essential for more detailed setting suggestions please refer to our implementation guide step 5 connect your laptop to the network switch use ipinstaller to instantly identify the ip addresses of your connected units step 6. open the browser and key in the ip address of any of your transmitters to log into the ve manager an intuitive web gui to manage your
