4K/UHD Dual-Distance 4x4 HDMI Matrix Switcher with PoE using HDBaseT technology

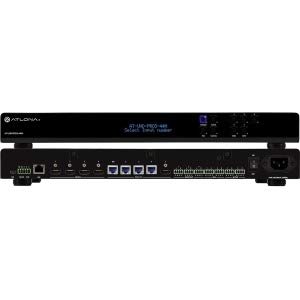

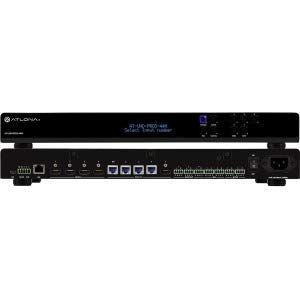

The Atlona AT-UHD-PRO3-44M is a dual-distance 4x4 HDMI matrix switcher for 4K/UHD @ 60Hz video signals with Power over Ethernet for receivers and analog audio breakout. The matrix provides both extended distance, 328 foot (100 meter) and long distance, 230 foot (70 meter) transmission over category cable using HDBaseT technology. It also provides convenient bidirectional extension of both RS-232 and IR Control. An HDMI output is provided as a mirrored output designed for routing HDMI-based audio to an AVR or as an additional matrix output. The matrix switcher is HDCP 2.2 compliant and supports EDID communication. The matrix is control system-friendly and integrates with any TCP/IP, RS-232, or IR based control signals. Designed for multi-zone residential or commercial distribution applications, the AT-UHD-PRO3-44M features a 1U, rack-mountable enclosure with an internal, international power supply.

The AT-UHD-PRO3-44M is ideal for professional installation in:

• Multi-zone applications to distribute multiple AV signals along with control signals. One, 328 foot (100 meter) HDBaseT-compatible output pairs with an AT-UHD-EX-100CE-RX* receiver and three, 230 foot (70 meter) HDBaseT-compatible outputs work with AT-UHD-EX-70C-RX receivers to meet a variety of distribution distances and needs throughout a residence.
• Home AV systems with separate distributed audio systems. Three unbalanced audio outputs on captive screw connectors simplify connection to multichannel amplifiers for zoned audio where level, mute, and a 5-band graphic EQ can be applied in the matrix switcher for each zone.
