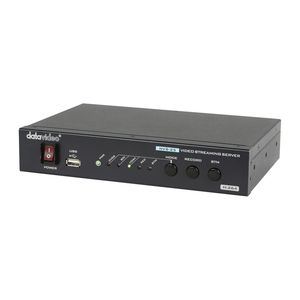

Datavideo NVS-25 Broadcast Quality H.264 HD Video Streaming Server

the nvs 25 works as a streaming server and also records your video productions the setup is straightforward let's take a look connect your video input source to the NBS 25 you will connect the SDI output from the SE 700 to the SDI input of the NBS 25 connect an ethernet cable from your network to the land port located on the backside of the NBS 25 turn on the NBS 25 with the power switch located in the front left side of the device the NBS 25 will now connect to your Ethernet or web network you will need to install the supplied IP finder software on a computer or laptop connected to your network using the IP finder software you can locate the IP number assigned to the NBS 25 this number shows how the NBS 25 connects your network and is the unique address to locate and identify the NBS 25 you will also notice that the s TM or stream LED light will glow a solid green if you have correctly
