Product Description:

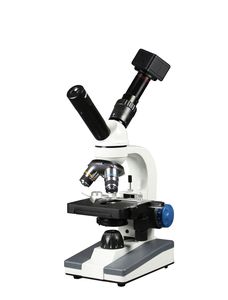

This dual view compound microscope has two 10x widefield eyepiece one with a pointer, and a 25x widefield eyepiece. The 45° inclined dual viewing head reduces eye and neck strain and rotates 360° to provide trouble-free observation for two people.

Product Specifications:

• Head: 45° Inclined Dual View, rotates 360°
• Eyepiece: Two WF 10X one with pointer, one WF 25X Eyepiece
• Magnification: 40x, 100x, 250x, 400x, 1000x
• Objective Lens: 4x, 10x, 40xR achromatic objectives
• Nosepiece: 3 hole objective turret; reverse position
• Stage: Built in, double layer mechanical stage 4” x 3 ½ “ (W x D)
• Focusing: Coaxial coarse and fine focusing with gear movement
• Condenser: 0.65 Abbe Condenser
• Diaphragm: Iris Diaphragm
• Light Source: LED Illumination with intensity control
• Power: 110V
• Warranty：5 year limited warranty excluding bulbs & digital camera

Camera Specifications:

• 5 megapixel camera
• Output: USB2.0
• View, Capture and Edit Images with included software; measure and quantify images
• Free download app available from Apple and Google Play store
• Includes CD for PC (Windows 2000 / XP2 / Vista / Win7/ Win10)

Packing List

• Dual view biological microscope with LED illumination
• Two 10x wide-field eyepieces one with pointer
• One 25x wide-field eyepieces
• 4x, 10x, 40x objectives
• Double layer, built-in mechanical stage with 2 Stage clips
• 5 MP digital eyepiece camera, USB 2.0 cable and Imaging software CD
• Power adaptor, One dust cover and User manual

Shipping information

• 7” X 9” X 16”
• 6 lbs
